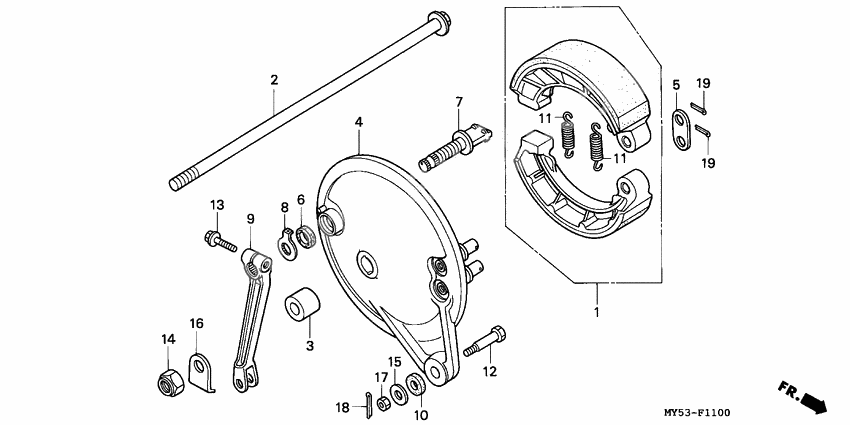

Rear brake panel
Rear brake panel
Shoe kit, brake (Ref #1)
1
Part #06430-MW3-671
Axle,rr.wheel (Ref #2)
2
Part #42301-MY5-610
Collar,rr brake s (Ref #3)
3
Part #42313-MY5-610
Panel comp,rear (Ref #4)
4
Part #43100-MY5-610
Washer, anchor pin (Ref #5)
5
Part #43102-319-000
Dust seal, brake cam (Ref #6)
6
Part #43134-300-000
Cam, rr. brake (Ref #7)
7
Part #43141-MB0-010
Indicator, rr. brake (Ref #8)
8
Part #43145-ME5-000
Arm, rr. brake (Ref #9)
9
Part #43410-MJ1-000
Rubber, stopper arm (Ref #10)
10
Part #43434-ME1-670
Spring, fr. brake shoe (Ref #11)
11
Part #45133-329-000
Spring, fr. brake shoe (Ref #11)
11
Part #45133-329-000
Spring, fr. brake shoe (Ref #11)
11
Part #45133-329-000
Spring, fr. brake shoe (Ref #11)
11
Part #45133-329-000
Bolt, rr (Ref #12)
12
Part #90127-393-000
Болт (Ref #13)
13
Part #90131-GAA-000
Nut, u (16mm) (Ref #14)
14
Part #90305-GW2-711
Washer, 8mm (Ref #15)
15
Part #90505-425-000
Washer,rr.swing a (Ref #16)
16
Part #90559-ML4-000
Гайка (Ref #17)
17
Part #94001-080-000-S
PIN (Ref #18)
18
Part #9420120350
PIN (Ref #19)
19
Part #9420125300
PIN (Ref #19)
19
Part #9420125300
PIN (Ref #19)
19
Part #9420125300
PIN (Ref #19)
19
Part #9420125300
