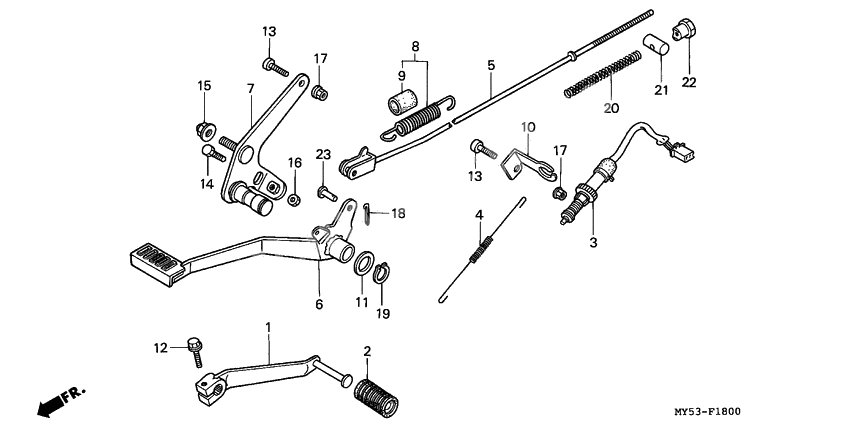

Brake pedal assy
Brake pedal assy
Pedal gear change (Ref #1)
1
Part #24701-MY5-610
Rubber, change pedal (Ref #2)
2
Part #24781-KR3-770
Switch, rr. stop (Ref #3)
3
Part #35350-MG7-405
Spring, stop switch (Ref #4)
4
Part #35357-077-000
Rod comp,rr.brk (Ref #5)
5
Part #43451-MY5-610
PEDAL COMP,BRAKE (Ref #6)
6
Part #46500-MY5-610
Plate,rr brake pi (Ref #7)
7
Part #46502-MY5-610
Spring set,brk.pe (Ref #8)
8
Part #46513-KR6-000
TUBE (Ref #9)
9
Part #46515-KL4-000
Stay stop sw. (Ref #10)
10
Part #50601-KBV-000
Bush, washer (Ref #11)
11
Part #53312-657-000
Болт (Ref #12)
12
Part #90118-KY1-000
Болт ,6X20 (Ref #13)
13
Part #90118-ML7-000
Болт ,6X20 (Ref #13)
13
Part #90118-ML7-000
Болт ,6X20 (Ref #13)
13
Part #90118-ML7-000
Болт ,6X20 (Ref #13)
13
Part #90118-ML7-000
Болт (Ref #14)
14
Part #90151-KR8-000
Nut, cap, 8mm (Ref #15)
15
Part #90443-107-000
Гайка (Ref #16)
16
Part #94001-062-000-S
Гайка (Ref #17)
17
Part #94050-06000
Гайка (Ref #17)
17
Part #94050-06000
Гайка (Ref #17)
17
Part #94050-06000
Гайка (Ref #17)
17
Part #94050-06000
PIN (Ref #18)
18
Part #94201-20120
Circlip, external, 15mm (Ref #19)
19
Part #9451115000
Spring a, brake rod (Ref #20)
20
Part #9501473100
Joint b, brake arm (Ref #21)
21
Part #9501532001
Nut b, brake rod adjusting (Ref #22)
22
Part #9501542000
Pin, joint (Ref #23)
23
Part #9501553000
