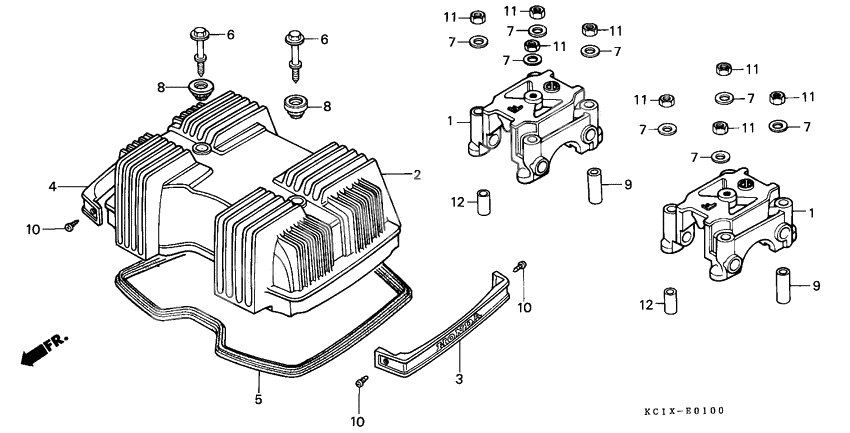

Cylinder head cover
Cylinder head cover
Holder, camshaft (Ref #1)
1
Part #12231-399-010
Holder, camshaft (Ref #1)
1
Part #12231-399-010
Holder, camshaft (Ref #1)
1
Part #12231-399-010
Holder, camshaft (Ref #1)
1
Part #12231-399-010
COVER (Ref #2)
2
Part #12311-KC1-730
Emblem (Ref #3)
3
Part #12312-KC2-730
Emblem (Ref #4)
4
Part #12313-KC2-730
Gasket, cyl hd cvr (Ref #5)
5
Part #12391-399-000
Bolt,special,6x38 (Ref #6)
6
Part #90036-402-730
Bolt,special,6x38 (Ref #6)
6
Part #90036-402-730
Bolt,special,6x38 (Ref #6)
6
Part #90036-402-730
Bolt,special,6x38 (Ref #6)
6
Part #90036-402-730
Rubber, setting (Ref #8)
8
Part #90541-371-000
Rubber, setting (Ref #8)
8
Part #90541-371-000
Rubber, setting (Ref #8)
8
Part #90541-371-000
Rubber, setting (Ref #8)
8
Part #90541-371-000
Dowel pin, 10x28 (Ref #9)
9
Part #90701-399-000
Dowel pin, 10x28 (Ref #9)
9
Part #90701-399-000
Dowel pin, 10x28 (Ref #9)
9
Part #90701-399-000
Dowel pin, 10x28 (Ref #9)
9
Part #90701-399-000
Dowel pin (Ref #12)
12
Part #94301-10160
Dowel pin (Ref #12)
12
Part #94301-10160
Dowel pin (Ref #12)
12
Part #94301-10160
Dowel pin (Ref #12)
12
Part #94301-10160
