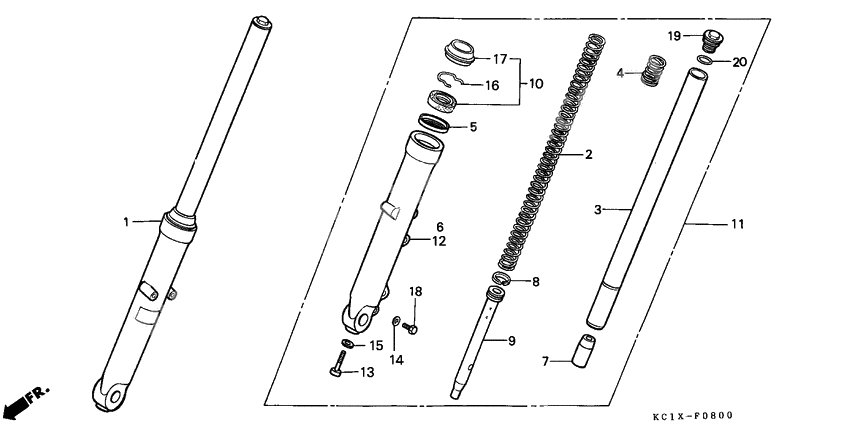

Front
Front
Fork assy,r front (Ref #1)
1
Part #51400-KC1-013
Fork assy.,r.fr. (Ref #1)
1
Part #51400-KC1-003
Spg.,fr.cushion (Ref #2)
2
Part #51401-KC1-003
Pipe,fr.fork (Ref #3)
3
Part #51410-KC1-003
Пружина (Ref #4)
4
Part #51412-331-770
Ring,back up (Ref #5)
5
Part #51412-446-003
Case comp,r fr bo (Ref #6)
6
Part #51421-KC1-013
Case,r.bottom (Ref #6)
6
Part #51421-KC1-003
PIECE,OIL LOCK (Ref #7)
7
Part #51432-447-731
RING,PISTON (Ref #8)
8
Part #51437-373-781
PIPE,SEAT (Ref #9)
9
Part #51470-KB4-003
Seal set, fr. fork (Ref #10)
10
Part #51490-GAA-305
Fork assy,l front (Ref #11)
11
Part #51500-KC1-013
Fork assy.,l.fr. (Ref #11)
11
Part #51500-KC1-003
Case,l.bottom (Ref #12)
12
Part #51520-KC1-003
Case comp,l fr bo (Ref #12)
12
Part #51520-KC1-013
Bolt, socket (8mm) (Ref #13)
13
Part #90116-383-721
Gasket, fr. (Ref #14)
14
Part #90543-273-000
Шайба (Ref #15)
15
Part #90544-283-000
Ring, oil seal stop (Ref #16)
16
Part #90601-354-000
DUST SEAL (Ref #17)
17
Part #91254-GAA-003
Bolt, hex., 6x8 (Ref #18)
18
Part #92101-06008-0A
Bolt d1, fork (Ref #19)
19
Part #9460527101
O-ring, 23x2.8 (Ref #20)
20
Part #9460850000
