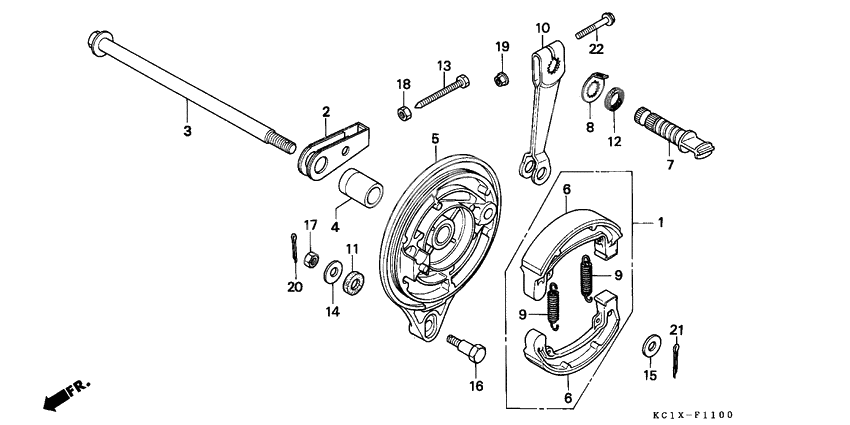

Rear brake panel
Rear brake panel
Отсутствующе (Ref #1)
1
Part #06430-KC1-750
Shoe kit, brake (Ref #1)
1
Part #06430-KBG-700
ADJUSTER,CHAIN (Ref #2)
2
Part #40543-KC1-730
Axle rear wheel (Ref #3)
3
Part #42301-KC1-730
Collar, rr. (Ref #4)
4
Part #42313-399-000
Panel comp.,rr.br (Ref #5)
5
Part #43100-KC1-730
Cam rear brake (Ref #7)
7
Part #43141-ME4-000
Indicator,rr.brk. (Ref #8)
8
Part #43145-KC1-000
Spring, brake shoe (Ref #9)
9
Part #43151-329-000
Spring, brake shoe (Ref #9)
9
Part #43151-329-000
Spring, brake shoe (Ref #9)
9
Part #43151-329-000
Spring, brake shoe (Ref #9)
9
Part #43151-329-000
Arm,rr.brake (Ref #10)
10
Part #43410-399-000
RUBBER (Ref #11)
11
Part #43434-286-000
Dust seal, brake cam (Ref #12)
12
Part #45134-250-000
Bolt,chain adjust (Ref #13)
13
Part #90119-258-000
Washer, 8mm (Ref #14)
14
Part #90505-425-000
Washer a (Ref #15)
15
Part #90524-030-000
Болт сквозное (Ref #16)
16
Part #9281110000
Гайка (Ref #17)
17
Part #94001-062-000-S
Гайка (Ref #18)
18
Part #94001-080-000-S
Гайка (Ref #19)
19
Part #94050-06000
Nut, u, 6mm (Ref #19)
19
Part #90301-473-003
PIN (Ref #20)
20
Part #94201-20150
PIN (Ref #21)
21
Part #9420120350
Bolt, flange, 6x35 (Ref #22)
22
Part #95701-0603500
