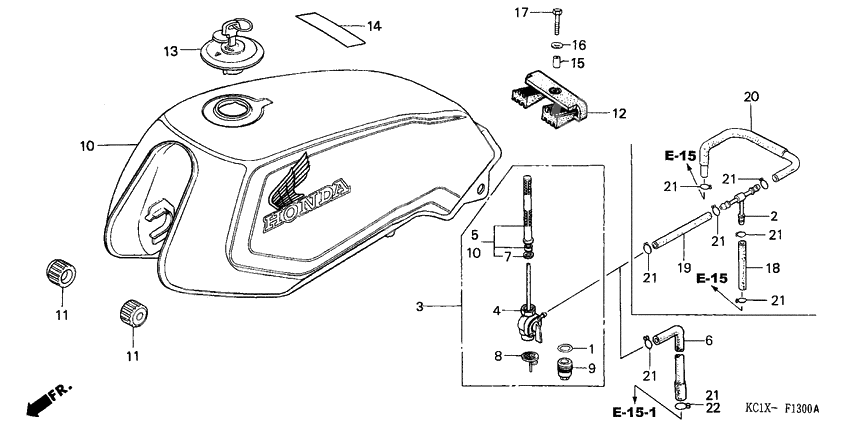

Tank fuel
Tank fuel
Packing, fuel strainer cup (Ref #1)
1
Part #16173-001-004
Cock assy.,fuel (Ref #3)
3
Part #16950-KC1-005
Body comp.,cock (Ref #4)
4
Part #16951-195-701
Filter set, fuel (Ref #5)
5
Part #16952-KC1-005
Tube, fuel (Ref #6)
6
Part #16953-KC1-730
O-ring, 9.0x1.3 (Ref #7)
7
Part #16958-397-771
Filter, cup (Ref #8)
8
Part #16959-471-831
Cup, fuel strainer (Ref #9)
9
Part #16967-GA6-671
Комплект бака (Ref #10)
10
Part #17520-KC1-980ZA
Комплект бака (Ref #10)
10
Part #17520-KC1-980ZA
Комплект бака (Ref #10)
10
Part #17520-KC1-980ZA
Комплект бака (Ref #10)
10
Part #17520-KC1-980ZA
Резина (Ref #11)
11
Part #17611-KE8-000
Резина (Ref #11)
11
Part #17611-KE8-000
Резина (Ref #11)
11
Part #17611-KE8-000
Резина (Ref #11)
11
Part #17611-KE8-000
Cush.fuel tank rr (Ref #12)
12
Part #17613-KE5-000
Cap comp.,fuel fi (Ref #13)
13
Part #17620-460-067
Label, drive (typet) (Ref #14)
14
Part #87560-MT2-300ZB
Collar, top bridge (Ref #15)
15
Part #53236-171-000
Washer, 8.3mm (Ref #16)
16
Part #90534-011-000
Bolt, hex., 8x25 (Ref #17)
17
Part #92101-08025-0A
