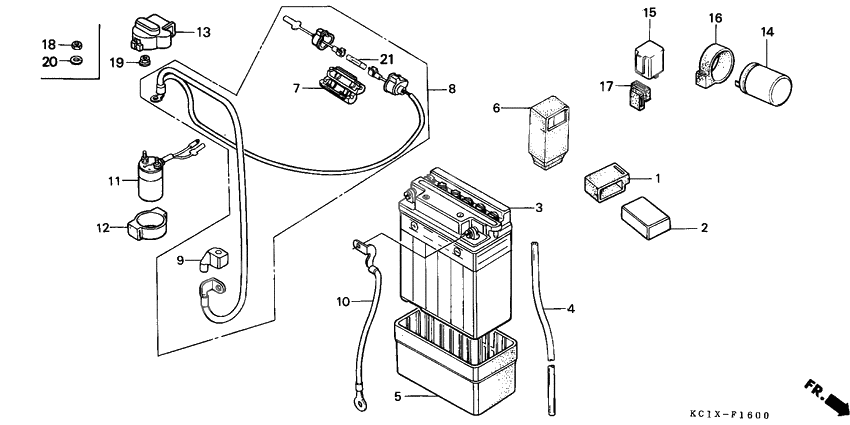

Battery/c.d.i. unit
Battery/c.d.i. unit
Cushion, c.d.i. unit (Ref #1)
1
Part #30401-VM0-000
Блок конденсаторного зажигания (Ref #2)
2
Part #30410-KC1-751
Battery (12n9-4b- (Ref #3)
3
Part #31500-KC1-920
Battery assy (Ref #3)
3
Part #31500-465-701
TUBE (Ref #4)
4
Part #31502-KC1-000
Cushion,battery (Ref #5)
5
Part #31511-KC1-730
Case,fuse(15a) (Ref #7)
7
Part #32125-KC1-000
Cable,starter bat (Ref #8)
8
Part #32401-KC1-920
Cover battery (Ref #9)
9
Part #32412-402-700
Sw assy start mag (Ref #11)
11
Part #35850-KC1-670
Sw.assy.,start ma (Ref #11)
11
Part #35850-KR3-671
RUBBER (Ref #12)
12
Part #35856-KC1-700
Cover,start sw (Ref #13)
13
Part #35857-KB4-000
Relay comp,winker (Ref #15)
15
Part #38301-KK4-024
Relay comp,winker (Ref #15)
15
Part #38301-GE8-008
Suspension (Ref #17)
17
Part #38306-KJ6-740
Nut-washer (Ref #19)
19
Part #94070-06080
Коробка предохранителей (Ref #21)
21
Part #98200-21500
