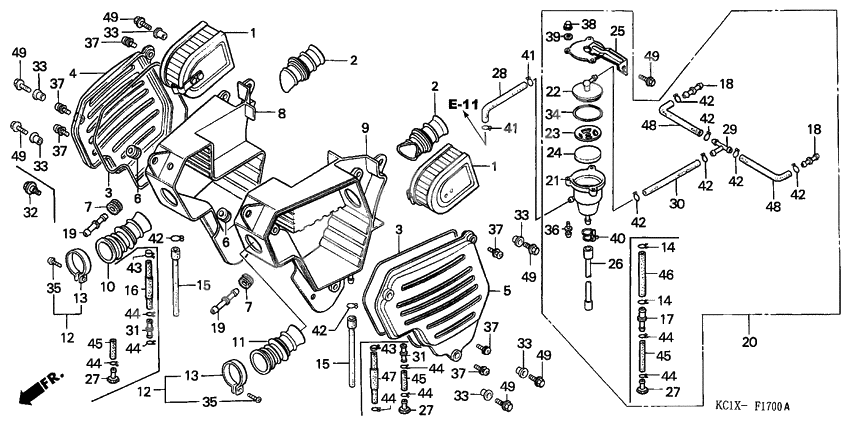

Воздушный фильтр
Воздушный фильтр
Element,air clean (Ref #1)
1
Part #17211-KC1-920
Element,air clean (Ref #1)
1
Part #17211-KC1-920
Element,air clean (Ref #1)
1
Part #17211-KC1-920
Element,air clean (Ref #1)
1
Part #17211-KC1-920
Duct, a/clnr hsg (Ref #2)
2
Part #17212-KC1-730
Duct, a/clnr hsg (Ref #2)
2
Part #17212-KC1-730
Duct, a/clnr hsg (Ref #2)
2
Part #17212-KC1-730
Duct, a/clnr hsg (Ref #2)
2
Part #17212-KC1-730
Seal air/c cover (Ref #3)
3
Part #17219-HA2-405
Seal air/c cover (Ref #3)
3
Part #17219-HA2-405
Seal air/c cover (Ref #3)
3
Part #17219-HA2-405
Seal air/c cover (Ref #3)
3
Part #17219-HA2-405
Cover r.air/c. (Ref #4)
4
Part #17221-KC1-730
Cover l.air/c. (Ref #5)
5
Part #17222-KC1-730
Grommet, tube (Ref #7)
7
Part #17225-KC1-650
Grommet, tube (Ref #7)
7
Part #17225-KC1-650
Grommet, tube (Ref #7)
7
Part #17225-KC1-650
Grommet, tube (Ref #7)
7
Part #17225-KC1-650
Case, r. air cleaner (Ref #8)
8
Part #17231-KC1-920
Case, l. air cleaner (Ref #9)
9
Part #17232-KC1-920
Tube,r.air cleane (Ref #10)
10
Part #17252-KC1-730
Tube,l.air cleane (Ref #11)
11
Part #17253-KC1-730
Band, a/clnr tube (Ref #12)
12
Part #9501856200
Band, a/clnr tube (Ref #12)
12
Part #9501856200
Band, a/clnr tube (Ref #12)
12
Part #9501856200
Band, a/clnr tube (Ref #12)
12
Part #9501856200
Clip, breather tube (Ref #14)
14
Part #17316-611-000
Clip, breather tube (Ref #14)
14
Part #17316-611-000
Clip, breather tube (Ref #14)
14
Part #17316-611-000
Clip, breather tube (Ref #14)
14
Part #17316-611-000
Трубка (Ref #16)
16
Part #17359-KC1-920
Joint, breather tube (Ref #17)
17
Part #17359-KT1-780
Joint, breather tube (Ref #19)
19
Part #17359-419-670
Joint, breather tube (Ref #19)
19
Part #17359-419-670
Joint, breather tube (Ref #19)
19
Part #17359-419-670
Joint, breather tube (Ref #19)
19
Part #17359-419-670
Корпус (Ref #21)
21
Part #17361-419-670
Cap,breather sep. (Ref #22)
22
Part #17362-174-670
Holder, element (Ref #23)
23
Part #17363-419-670
Элемент (Ref #24)
24
Part #17364-419-000
COVER (Ref #25)
25
Part #17366-KC1-920
Superceded (Ref #28)
28
Part #15761-KC1-940
JOINT (Ref #29)
29
Part #17373-399-760
Superceded (Ref #30)
30
Part #17376-KC1-940
Joint, tube (Ref #31)
31
Part #19102-KT8-000
Joint, tube (Ref #31)
31
Part #19102-KT8-000
Joint, tube (Ref #31)
31
Part #19102-KT8-000
Joint, tube (Ref #31)
31
Part #19102-KT8-000
Bolt, special, 6mm (Ref #32)
32
Part #90122-752-000
Прокладка (Ref #34)
34
Part #91305-419-670
Screw, pan, 4x20 (Ref #35)
35
Part #93500-040200G
Screw, pan, 4x20 (Ref #35)
35
Part #93500-040200G
Screw, pan, 4x20 (Ref #35)
35
Part #93500-040200G
Screw, pan, 4x20 (Ref #35)
35
Part #93500-040200G
Screw-washer (Ref #36)
36
Part #93891-040-160-7
Nut, cap (4mm) (Ref #38)
38
Part #94021-040700S
Шайба (Ref #39)
39
Part #94101-04700
CLIP (Ref #41)
41
Part #95002-02120
CLIP (Ref #41)
41
Part #95002-02120
CLIP (Ref #41)
41
Part #95002-02120
CLIP (Ref #41)
41
Part #95002-02120
CLAMP (Ref #43)
43
Part #95002-412-000-8
CLAMP (Ref #43)
43
Part #95002-412-000-8
CLAMP (Ref #43)
43
Part #95002-412-000-8
CLAMP (Ref #43)
43
Part #95002-412-000-8
Tube (12x120) (Ref #46)
46
Part #95005-121-203-0
Tube,7.3x300 (Ref #47)
47
Part #95005-753-002-0
Tube,8x150 (Ref #48)
48
Part #95005-801-502-0
Tube,8x150 (Ref #48)
48
Part #95005-801-502-0
Tube,8x150 (Ref #48)
48
Part #95005-801-502-0
Tube,8x150 (Ref #48)
48
Part #95005-801-502-0
