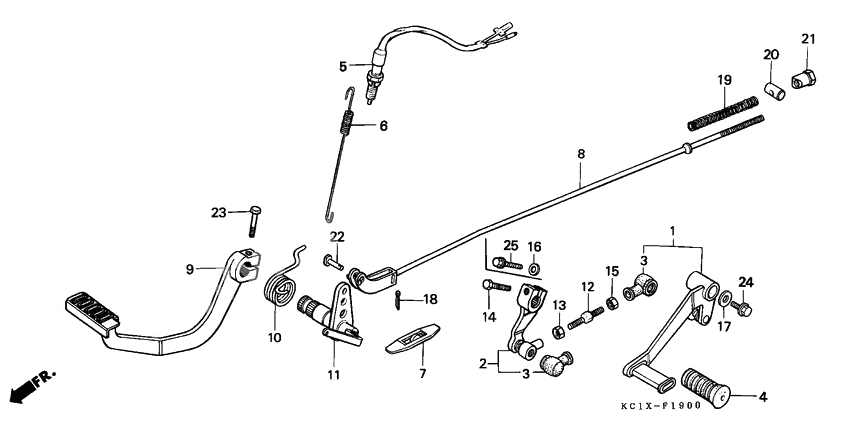

Change pedal/brake pedal
Change pedal/brake pedal
Pedal,gear change (Ref #1)
1
Part #24700-KC1-000
Arm,gear change (Ref #2)
2
Part #24710-KC1-000
Пыльник (Ref #3)
3
Part #24724-422-000
Пыльник (Ref #3)
3
Part #24724-422-000
Пыльник (Ref #3)
3
Part #24724-422-000
Пыльник (Ref #3)
3
Part #24724-422-000
RUBBER (Ref #4)
4
Part #24781-419-000
Switch assy (Ref #5)
5
Part #35350-385-702
Spring, stop switch (Ref #6)
6
Part #35357-KC1-730
Крышка (Ref #7)
7
Part #43411-KC1-000
Rod,rr.brake (Ref #8)
8
Part #43451-KC1-730
Pedal comp.,rr.br (Ref #9)
9
Part #46500-KC1-700
Spg.,brake pedal (Ref #10)
10
Part #46514-KC1-000
Shaft,rr.brk.pivo (Ref #11)
11
Part #46515-KC1-000
Bolt, tie rod (Ref #12)
12
Part #90065-KC1-000
Nut, tie rod (Ref #13)
13
Part #90201-KC1-000
Гайка (Ref #15)
15
Part #94002-060-700-S
Шайба (Ref #17)
17
Part #94103-06700
PIN (Ref #18)
18
Part #94201-16120
Spring a, brake rod (Ref #19)
19
Part #9501473100
Joint b, brake arm (Ref #20)
20
Part #9501532001
Nut b, brake rod adjusting (Ref #21)
21
Part #9501542000
Pin b,joint (Ref #22)
22
Part #43452-KB4-000
Bolt, flange, 8x28 (Ref #23)
23
Part #95701-0802807
BOLT (Ref #24)
24
Part #96001-060-120-7
BOLT (Ref #25)
25
Part #95701-060-200-7
