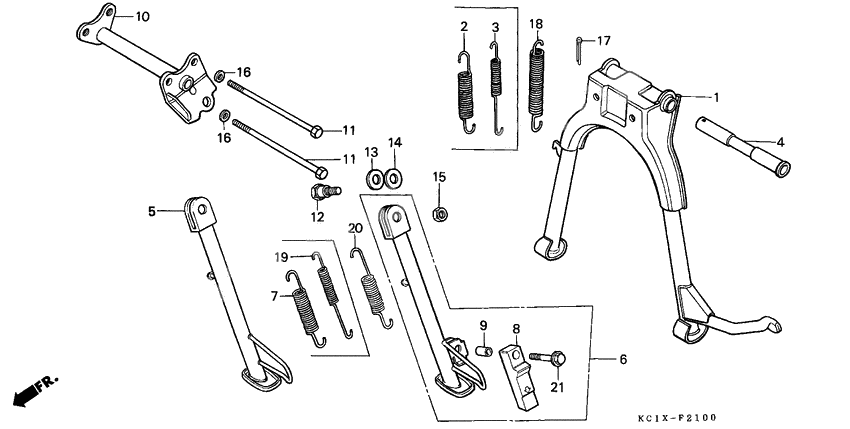

Stand comp
Stand comp
Stand comp.,main (Ref #1)
1
Part #50500-KC1-730
SHAFT (Ref #4)
4
Part #50526-KC1-920
Торсион задней двери (Ref #6)
6
Part #50540-KC1-750
Rubber, stand (Ref #8)
8
Part #50548-356-700
COLLAR (Ref #9)
9
Part #50549-356-700
Bracket comp. (Ref #10)
10
Part #50610-KC1-750
BOLT (Ref #11)
11
Part #95801-081-300-0
BOLT (Ref #11)
11
Part #95801-081-300-0
BOLT (Ref #11)
11
Part #95801-081-300-0
BOLT (Ref #11)
11
Part #95801-081-300-0
BOLT (Ref #12)
12
Part #90108-ML7-610
Шайба (Ref #13)
13
Part #90501-MF9-710
Шайба (Ref #14)
14
Part #90502-MF9-710
Nut, side stand (Ref #15)
15
Part #90203-MF9-710
Шайба (Ref #16)
16
Part #94101-08000
Шайба (Ref #16)
16
Part #94101-08000
Шайба (Ref #16)
16
Part #94101-08000
Шайба (Ref #16)
16
Part #94101-08000
PIN (Ref #17)
17
Part #94201-30250
Spring, main stand (Ref #18)
18
Part #50510-KK6-700
Пружина (Ref #20)
20
Part #50541-MM4-000
Болт (Ref #21)
21
Part #95701-0602807
