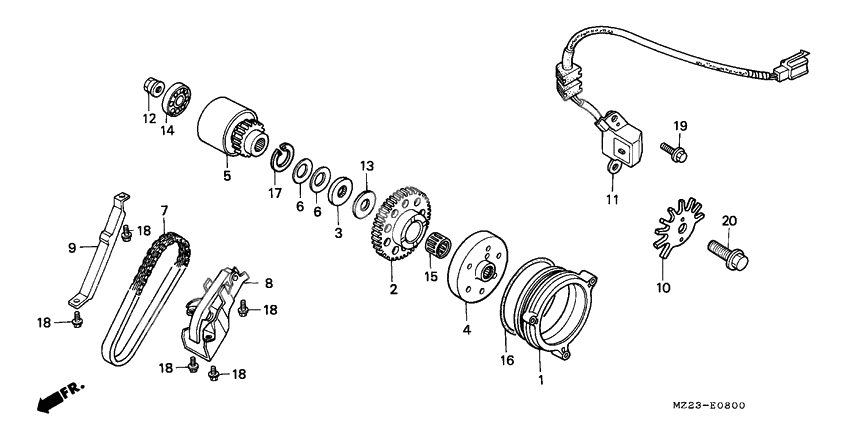

Starting clutch
Starting clutch
Base, alternator (Ref #1)
1
Part #11102-MS2-610
Шестерня (Ref #2)
2
Part #28110-MM5-010
COLLAR (Ref #3)
3
Part #28115-MM5-020
Clutch outer (Ref #4)
4
Part #28125-MS2-613
Damper, alternator (Ref #5)
5
Part #28130-MS2-610
Disk, spring (Ref #6)
6
Part #28151-MM0-003
Disk, spring (Ref #6)
6
Part #28151-MM0-003
Disk, spring (Ref #6)
6
Part #28151-MM0-003
Disk, spring (Ref #6)
6
Part #28151-MM0-003
Цепь (Ref #7)
7
Part #28161-MM5-013
Tensioner, altntr (Ref #8)
8
Part #28170-MM5-640
Guide (Ref #9)
9
Part #28191-MM5-000
Rotor, pulse (Ref #10)
10
Part #30291-MZ1-000
Generator, pulse (Ref #11)
11
Part #30300-MW7-003
Nut, flange (12mm) (Ref #12)
12
Part #90234-MM4-000
Washer, 20x37x2 (Ref #13)
13
Part #90404-KK0-000
Bearing (6203) (Ref #14)
14
Part #91006-HA2-008
BEARING (Ref #15)
15
Part #91108-634-961
Прокладка (Ref #16)
16
Part #91303-PA9-004
Circlip (Ref #17)
17
Part #94520-42000
BOLT (Ref #19)
19
Part #95701-060-160-0
BOLT (Ref #20)
20
Part #95701-100-200-8
