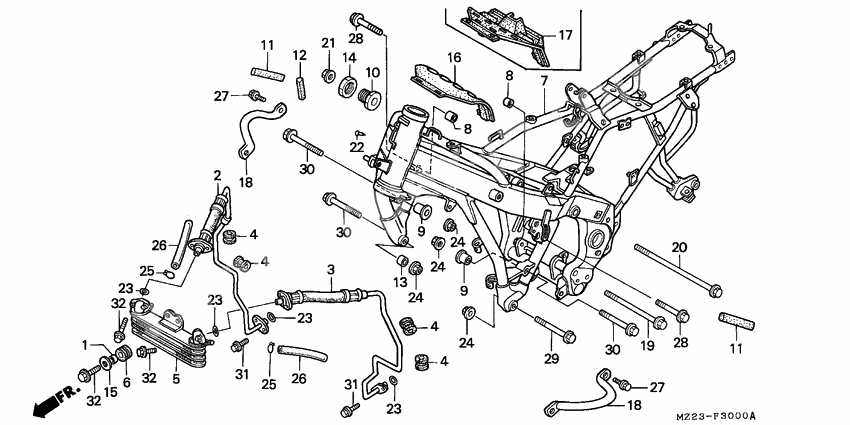

Frame body/oil cooler
Frame body/oil cooler
Collar, 12mm (Ref #1)
1
Part #11513-MN5-300
Pipe, r. oil hose (Ref #2)
2
Part #15510-MZ2-000
Pipe, l. oil hose (Ref #3)
3
Part #15515-MZ2-000
Cooler, oil (Ref #5)
5
Part #15600-MZ2-G01
Rubber, radiator mounting (Ref #6)
6
Part #19051-KA3-830
Body comp,frame (Ref #7)
7
Part #50100-MZ2-610
Collar, pivot plate (Ref #8)
8
Part #50121-KV3-830
Collar, pivot plate (Ref #8)
8
Part #50121-KV3-830
Collar, pivot plate (Ref #8)
8
Part #50121-KV3-830
Collar, pivot plate (Ref #8)
8
Part #50121-KV3-830
Collar a, eng hgr (Ref #9)
9
Part #50209-MM5-000
Collar a, eng hgr (Ref #9)
9
Part #50209-MM5-000
Collar a, eng hgr (Ref #9)
9
Part #50209-MM5-000
Collar a, eng hgr (Ref #9)
9
Part #50209-MM5-000
Collar, adjusting (Ref #10)
10
Part #50217-MM5-000
Rubber a, seal (Ref #11)
11
Part #50261-MS2-300
Rubber a, seal (Ref #11)
11
Part #50261-MS2-300
Rubber a, seal (Ref #11)
11
Part #50261-MS2-300
Rubber a, seal (Ref #11)
11
Part #50261-MS2-300
Rubber b, seal (Ref #12)
12
Part #50262-MS2-300
Collar, fr. eng hgr (Ref #13)
13
Part #50356-KT8-000
Гайка (Ref #14)
14
Part #57071-SB0-800
Washer, fr. fender (Ref #15)
15
Part #61102-KF9-900
Rubber, heat guard (Ref #17)
17
Part #64110-MS2-720
Stay, bumper (Ref #18)
18
Part #64327-MS2-000
Stay, bumper (Ref #18)
18
Part #64327-MS2-000
Stay, bumper (Ref #18)
18
Part #64327-MS2-000
Stay, bumper (Ref #18)
18
Part #64327-MS2-000
Bolt, flg (12x239) (Ref #19)
19
Part #90102-MS2-670
Bolt, flg (12x365) (Ref #20)
20
Part #90103-MM5-000
Nut, flange (12mm) (Ref #21)
21
Part #90304-GJ3-600
Голвка вилта (Ref #22)
22
Part #90841-001-000
CLIP (Ref #25)
25
Part #95002-70000
CLIP (Ref #25)
25
Part #95002-70000
CLIP (Ref #25)
25
Part #95002-70000
CLIP (Ref #25)
25
Part #95002-70000
Tube (7x11x130) (Ref #26)
26
Part #95003-1901331
Tube (7x11x130) (Ref #26)
26
Part #95003-1901331
Tube (7x11x130) (Ref #26)
26
Part #95003-1901331
Tube (7x11x130) (Ref #26)
26
Part #95003-1901331
BOLT (Ref #27)
27
Part #95701-060-120-0
BOLT (Ref #27)
27
Part #95701-060-120-0
BOLT (Ref #27)
27
Part #95701-060-120-0
BOLT (Ref #27)
27
Part #95701-060-120-0
Bolt, flange, 10x45 (Ref #28)
28
Part #95701-1004500
Bolt, flange, 10x45 (Ref #28)
28
Part #95701-1004500
Bolt, flange, 10x45 (Ref #28)
28
Part #95701-1004500
Bolt, flange, 10x45 (Ref #28)
28
Part #95701-1004500
Bolt, flange, 10x70 (Ref #29)
29
Part #95701-1007000
BOLT (Ref #31)
31
Part #96001-060-160-0
BOLT (Ref #31)
31
Part #96001-060-160-0
BOLT (Ref #31)
31
Part #96001-060-160-0
BOLT (Ref #31)
31
Part #96001-060-160-0
