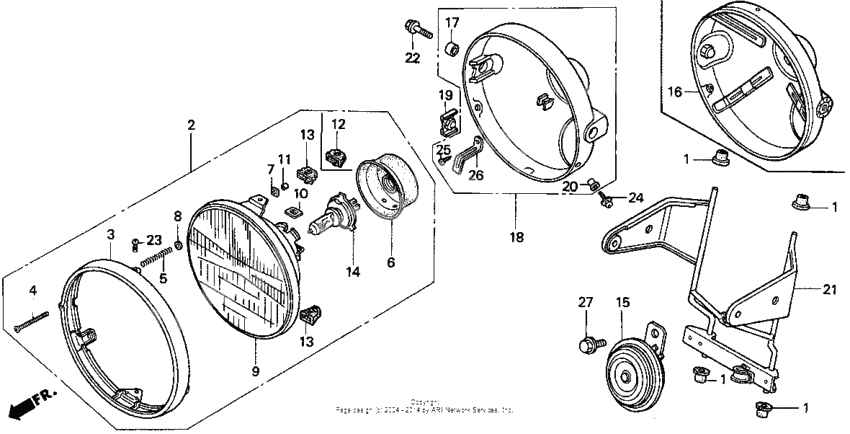

Headlight
Headlight
Hdlt (12v 60/55w) (Ref #2)
2
Part #33100-MN8-053
Rim, headlight (Ref #3)
3
Part #33101-405-671
Болт (Ref #4)
4
Part #33103-346-670
Пружина (Ref #5)
5
Part #33107-MZ1-791
Cover, rubber (Ref #6)
6
Part #33112-MM9-013
Nut, headlight beam adjusting (Ref #7)
7
Part #33117-001-023
Шайба (Ref #8)
8
Part #33119-371-003
Блок освещения (Ref #9)
9
Part #33120-KV0-703
Nut, unit holder (Ref #10)
10
Part #33128-292-670
Cover, screw (Ref #11)
11
Part #33136-426-830
COVER (Ref #12)
12
Part #33137-KV0-700
Bulb (12v 60/55w) (Ref #14)
14
Part #34901-MC7-601AH
Horn (Ref #15)
15
Part #38110-MR5-871
Case, headlight (Ref #16)
16
Part #61301-KN8-000
Stay, headlight (Ref #21)
21
Part #61311-MW3-A20
Болт (Ref #23)
23
Part #93500-050-080-H
Screw (5x12) (Ref #24)
24
Part #90001-MG9-670
Bolt, flange, 8x14 (Ref #27)
27
Part #95701-0801407
