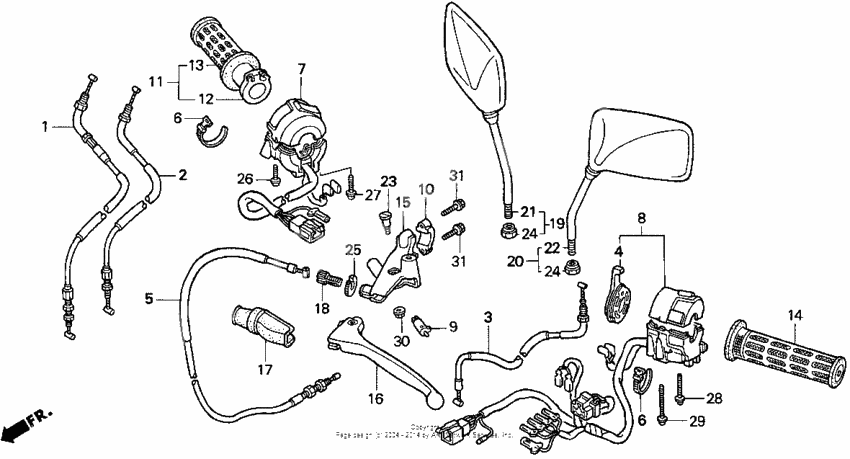

Handle switches + cables + mirrors
Handle switches + cables + mirrors
Cable a, throttle (Ref #1)
1
Part #17910-MW3-P00
Cable b, throttle (Ref #2)
2
Part #17920-MW3-670
Cable, choke (Ref #3)
3
Part #17950-MW3-670
Рукоятка (Ref #4)
4
Part #17962-MN8-003
Cable, clutch (Ref #5)
5
Part #22870-MW3-670
Band b1, wire (Ref #6)
6
Part #32161-404-000
Band b1, wire (Ref #6)
6
Part #32161-404-000
Band b1, wire (Ref #6)
6
Part #32161-404-000
Band b1, wire (Ref #6)
6
Part #32161-404-000
Switch, starter kill (Ref #7)
7
Part #35013-MCN-672
Switch, turn signal (Ref #8)
8
Part #35020-MCN-670
Switch, fr. lever (Ref #9)
9
Part #35330-413-003
HOLDER (Ref #10)
10
Part #45517-166-006
Зажим дросселя (Ref #11)
11
Part #53140-KC1-730
Grip, r. handle (Ref #13)
13
Part #53165-397-940
Grip, l. handle (Ref #14)
14
Part #53166-397-940
Brkt, handle lever (Ref #15)
15
Part #53172-KT7-751
Boot, handlebar (Ref #16)
16
Part #53180-425-010
BOLT (Ref #18)
18
Part #53192-349-690
Mirror, r. (Ref #21)
21
Part #88210-MW3-670
Mirror, l. (Ref #22)
22
Part #88220-MW3-670
Болт (Ref #23)
23
Part #90113-438-000
Nut, lock (Ref #24)
24
Part #90314-MS9-000
Nut, lock (Ref #24)
24
Part #90314-MS9-000
Nut, lock (Ref #24)
24
Part #90314-MS9-000
Nut, lock (Ref #24)
24
Part #90314-MS9-000
Nut, fixing (Ref #25)
25
Part #90321-KT7-760
Screw-washer (5x20) (Ref #26)
26
Part #93892-0502007
Screw-washer (5x25) (Ref #27)
27
Part #93892-0502507
Screw-washer (5x35) (Ref #28)
28
Part #93892-0503507
Screw-washer (5x45) (Ref #29)
29
Part #93892-0504507
ナット (Ref #30)
30
Part #94050-06070
Болт (Ref #31)
31
Part #96001-0602207
Болт (Ref #31)
31
Part #96001-0602207
Болт (Ref #31)
31
Part #96001-0602207
Болт (Ref #31)
31
Part #96001-0602207
