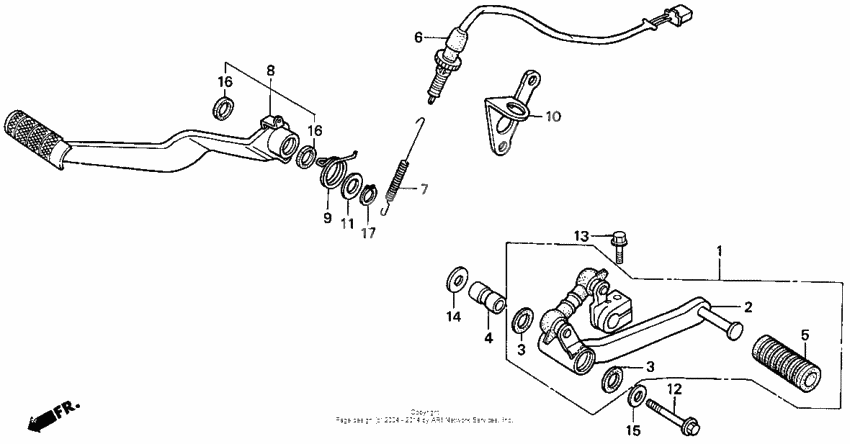

Pedal
Pedal
Pedal, gearshift (Ref #2)
2
Part #24705-MS2-000
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Collar, change pivot (Ref #4)
4
Part #24725-MS2-000
Rubber, change pedal (Ref #5)
5
Part #24781-KR3-770
Switch, rr. stop (Ref #6)
6
Part #35350-MM5-010
Spring, stop switch (Ref #7)
7
Part #35357-MM5-000
Pedal assy., brake (Ref #8)
8
Part #46500-MS2-000
Spring, brake pedal (Ref #9)
9
Part #46514-MS2-000
Stay, stop switch (Ref #10)
10
Part #50205-MS2-000
Bush, washer (Ref #11)
11
Part #53312-657-000
Болт (Ref #12)
12
Part #90104-KS5-000
Болт (Ref #13)
13
Part #90118-KY1-000
Шайба (Ref #14)
14
Part #90502-MS2-000
Washer, 8mm (Ref #15)
15
Part #90514-921-000
DUST SEAL (Ref #16)
16
Part #91251-444-000
DUST SEAL (Ref #16)
16
Part #91251-444-000
DUST SEAL (Ref #16)
16
Part #91251-444-000
DUST SEAL (Ref #16)
16
Part #91251-444-000
Circlip, external, 15mm (Ref #17)
17
Part #9451115000
