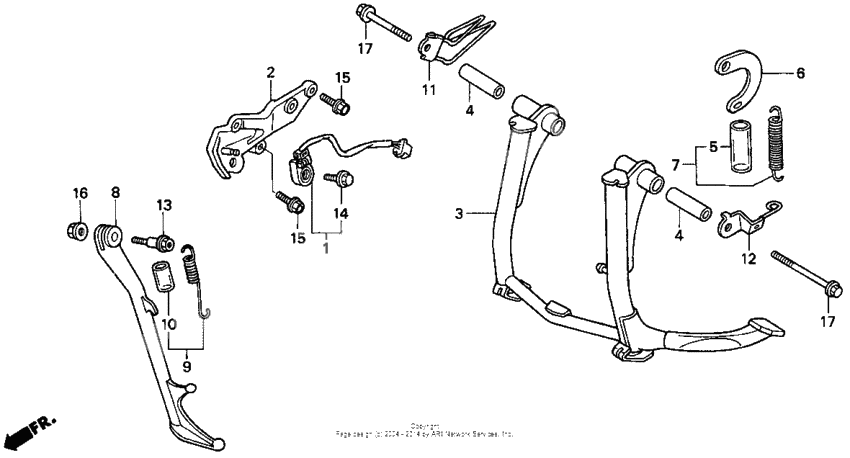

Stand
Stand
Switch, side stand (Ref #1)
1
Part #35700-MS2-305
Кронштейн боковой (Ref #2)
2
Part #50150-MZ2-000
Stand, main *nh1* (Ref #3)
3
Part #50500-MS2-670ZA
Collar, main stand (Ref #4)
4
Part #50503-MS2-000
Collar, main stand (Ref #4)
4
Part #50503-MS2-000
Collar, main stand (Ref #4)
4
Part #50503-MS2-000
Collar, main stand (Ref #4)
4
Part #50503-MS2-000
Tube (19x23) (Ref #5)
5
Part #50523-MM4-000
PLATE (Ref #6)
6
Part #50523-425-000
Spring, main stand (Ref #7)
7
Part #50525-MM4-000
Bar *nh1* (Ref #8)
8
Part #50530-MS2-000ZA
Spring, side stand (Ref #9)
9
Part #50542-MZ2-000
TUBE (Ref #10)
10
Part #50543-MV4-000
Guide, drain tube (Ref #11)
11
Part #64381-MS2-000
Stay, pivot cover (Ref #12)
12
Part #64391-MS2-000
BOLT (Ref #13)
13
Part #90108-MK6-670
Bolt, special (6x16) (Ref #14)
14
Part #90147-MCE-950
BOLT (Ref #15)
15
Part #90168-SP0-000
BOLT (Ref #15)
15
Part #90168-SP0-000
BOLT (Ref #15)
15
Part #90168-SP0-000
BOLT (Ref #15)
15
Part #90168-SP0-000
Nut, side stand (Ref #16)
16
Part #90203-MF9-710
BOLT (Ref #17)
17
Part #95801-100-750-8
BOLT (Ref #17)
17
Part #95801-100-750-8
BOLT (Ref #17)
17
Part #95801-100-750-8
BOLT (Ref #17)
17
Part #95801-100-750-8
