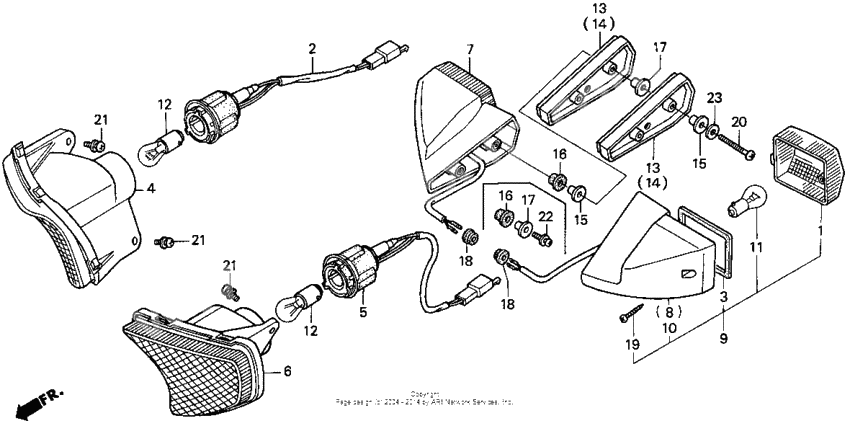

Turn signal
Turn signal
Lens, turn signal (Ref #1)
1
Part #33402-MGW-305
Socket, r. fr. (Ref #2)
2
Part #33405-MT4-671
Прокладка (Ref #3)
3
Part #33407-MM5-003
Lens, r. turn signal (Ref #4)
4
Part #33410-MZ2-003
Socket, l. fr. (Ref #5)
5
Part #33455-MT4-671
Lens, l. turn signal (Ref #6)
6
Part #33460-MZ2-003
Turn signal, r. rr. (Ref #7)
7
Part #33600-MM5-671
Base, r. rr. (Ref #8)
8
Part #33604-MM5-671
Turn signal, l. rr. (Ref #9)
9
Part #33650-MM5-671
Base, l. rr. (Ref #10)
10
Part #33654-MM5-671
Bulb (12v23w32cp) (Ref #11)
11
Part #34905-268-671
Bulb (12v23/8w) (Ref #12)
12
Part #34905-425-671
Bulb (12v23/8w) (Ref #12)
12
Part #34905-425-671
Bulb (12v23/8w) (Ref #12)
12
Part #34905-425-671
Bulb (12v23/8w) (Ref #12)
12
Part #34905-425-671
COLLAR (Ref #15)
15
Part #80125-MM5-000
COLLAR (Ref #15)
15
Part #80125-MM5-000
COLLAR (Ref #15)
15
Part #80125-MM5-000
COLLAR (Ref #15)
15
Part #80125-MM5-000
RUBBER (Ref #16)
16
Part #80126-MM5-000
RUBBER (Ref #16)
16
Part #80126-MM5-000
RUBBER (Ref #16)
16
Part #80126-MM5-000
RUBBER (Ref #16)
16
Part #80126-MM5-000
Collar a (Ref #17)
17
Part #80135-MM5-000
Collar a (Ref #17)
17
Part #80135-MM5-000
Collar a (Ref #17)
17
Part #80135-MM5-000
Collar a (Ref #17)
17
Part #80135-MM5-000
Уплотнение (Ref #18)
18
Part #83501-MG7-000
Уплотнение (Ref #18)
18
Part #83501-MG7-000
Уплотнение (Ref #18)
18
Part #83501-MG7-000
Уплотнение (Ref #18)
18
Part #83501-MG7-000
Screw, tap (3x30) (Ref #19)
19
Part #90157-MV9-600
Screw-washer (5x22) (Ref #22)
22
Part #93894-0502500
