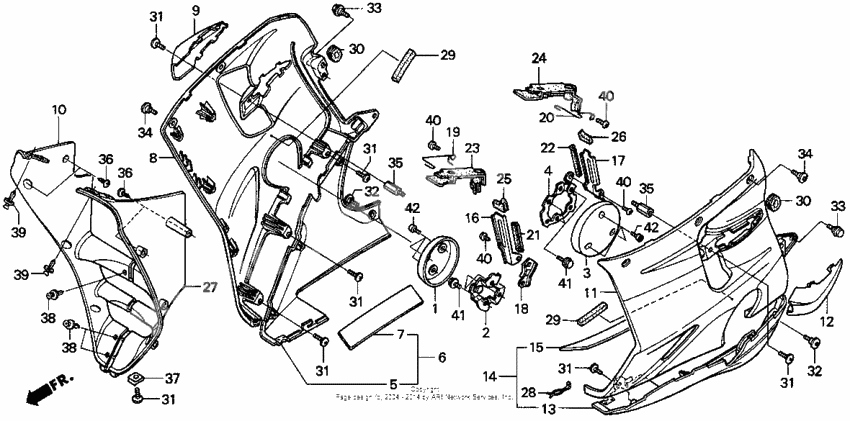

Lower cowl
Lower cowl
Protector, r (Ref #1)
1
Part #11313-MZ2-000
Stay, r (Ref #2)
2
Part #11315-MS2-000
Protector, l (Ref #3)
3
Part #11323-MZ2-000
Stay, l (Ref #4)
4
Part #11325-MS2-000
Cowl, r. *nh105* (Ref #5)
5
Part #64310-MZ2-000ZB
Cowl *nh1* (type19) (Ref #8)
8
Part #64325-MZ2-910ZA
Protr, r. *nh196* (Ref #9)
9
Part #64328-MZ2-000ZE
Cowl, r. *nh1* (Ref #10)
10
Part #64340-MZ2-000ZA
Cowl *nh1* (type19) (Ref #11)
11
Part #64365-MZ2-910ZA
Protr, l. *nh196* (Ref #12)
12
Part #64368-MZ2-000ZE
Cowl, l. *nh105* (Ref #13)
13
Part #64370-MZ2-000ZB
Separator, r. (Ref #16)
16
Part #64402-MS2-000
Separator, l. (Ref #17)
17
Part #64403-MS2-000
Stay, r (Ref #18)
18
Part #64404-MM4-000
Wire, r. (Ref #19)
19
Part #64406-MS2-000
Проводка (Ref #20)
20
Part #64407-MS2-000
Rubber, r (Ref #21)
21
Part #64408-MS2-000
Rubber, l (Ref #22)
22
Part #64409-MS2-000
Rubber a, r. (Ref #23)
23
Part #64411-MS2-000
Rubber a, l. (Ref #24)
24
Part #64412-MS2-000
Rubber b, r. (Ref #25)
25
Part #64413-MS2-000
Rubber b, l. (Ref #26)
26
Part #64414-MS2-000
Cowl, l. *nh1* (Ref #27)
27
Part #64440-MZ2-000ZA
Spring, cowl setting (Ref #28)
28
Part #64535-ML7-000
Воздухопровод радиатора (Ref #29)
29
Part #81240-MZ2-300
Воздухопровод радиатора (Ref #29)
29
Part #81240-MZ2-300
Воздухопровод радиатора (Ref #29)
29
Part #81240-MZ2-300
Воздухопровод радиатора (Ref #29)
29
Part #81240-MZ2-300
Уплотнение (Ref #30)
30
Part #83551-MA6-000
Уплотнение (Ref #30)
30
Part #83551-MA6-000
Уплотнение (Ref #30)
30
Part #83551-MA6-000
Уплотнение (Ref #30)
30
Part #83551-MA6-000
Screw, pan (6x11) (Ref #32)
32
Part #90106-KY2-701
Screw, pan (6x11) (Ref #32)
32
Part #90106-KY2-701
Screw, pan (6x11) (Ref #32)
32
Part #90106-KY2-701
Screw, pan (6x11) (Ref #32)
32
Part #90106-KY2-701
BOLT (Ref #33)
33
Part #90111-162-000
BOLT (Ref #33)
33
Part #90111-162-000
BOLT (Ref #33)
33
Part #90111-162-000
BOLT (Ref #33)
33
Part #90111-162-000
Screw, pan (6x14) (Ref #34)
34
Part #90113-MM5-000
Screw, pan (6x14) (Ref #34)
34
Part #90113-MM5-000
Screw, pan (6x14) (Ref #34)
34
Part #90113-MM5-000
Screw, pan (6x14) (Ref #34)
34
Part #90113-MM5-000
Bolt, middle cowl (Ref #35)
35
Part #90122-MZ2-000
Bolt, middle cowl (Ref #35)
35
Part #90122-MZ2-000
Bolt, middle cowl (Ref #35)
35
Part #90122-MZ2-000
Bolt, middle cowl (Ref #35)
35
Part #90122-MZ2-000
Болт (Ref #36)
36
Part #90133-SD4-000
Болт (Ref #36)
36
Part #90133-SD4-000
Болт (Ref #36)
36
Part #90133-SD4-000
Болт (Ref #36)
36
Part #90133-SD4-000
Nut, clip (5mm) (Ref #37)
37
Part #90312-MT3-000
CLIP (Ref #38)
38
Part #90657-SB0-003
CLIP (Ref #38)
38
Part #90657-SB0-003
CLIP (Ref #38)
38
Part #90657-SB0-003
CLIP (Ref #38)
38
Part #90657-SB0-003
ДЕТАЛЬ (Ref #39)
39
Part #90683-GR1-003
ДЕТАЛЬ (Ref #39)
39
Part #90683-GR1-003
ДЕТАЛЬ (Ref #39)
39
Part #90683-GR1-003
ДЕТАЛЬ (Ref #39)
39
Part #90683-GR1-003
BOLT (Ref #41)
41
Part #95701-060-120-0
BOLT (Ref #41)
41
Part #95701-060-120-0
BOLT (Ref #41)
41
Part #95701-060-120-0
BOLT (Ref #41)
41
Part #95701-060-120-0
Bolt, socket (6x10) (Ref #42)
42
Part #96600-0601007
Bolt, socket (6x10) (Ref #42)
42
Part #96600-0601007
Bolt, socket (6x10) (Ref #42)
42
Part #96600-0601007
Bolt, socket (6x10) (Ref #42)
42
Part #96600-0601007
