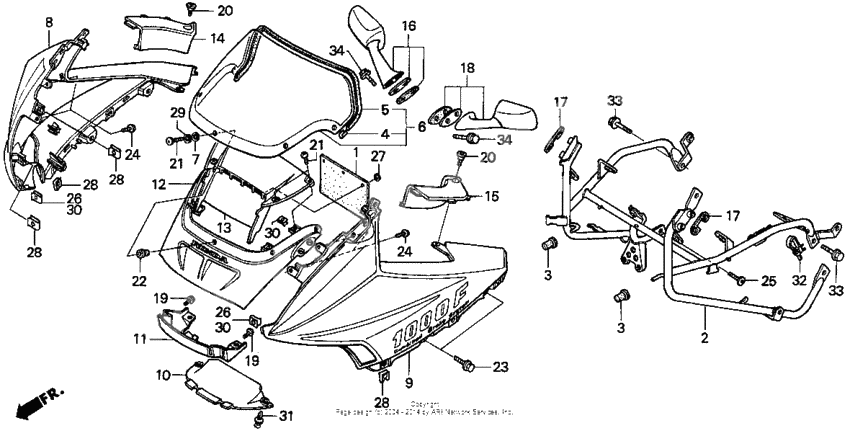

Upper cowl
Upper cowl
Protector, meter (Ref #1)
1
Part #37104-MAJ-G00
Stay, cowl (upper) (Ref #2)
2
Part #61311-MZ2-000
Grommet b, headlight (Ref #3)
3
Part #61313-422-000
Grommet b, headlight (Ref #3)
3
Part #61313-422-000
Grommet b, headlight (Ref #3)
3
Part #61313-422-000
Grommet b, headlight (Ref #3)
3
Part #61313-422-000
Clip, screen molding (Ref #4)
4
Part #64102-MJ0-000
Molding, windscreen (Ref #5)
5
Part #64105-MZ2-505
Windscreen set (Ref #6)
6
Part #64205-MZ2-670
Шайба (Ref #7)
7
Part #64205-166-610
Cowl *nh1* (type19) (Ref #8)
8
Part #64214-MZ2-910ZA
Cowl *nh1* (type19) (Ref #9)
9
Part #64215-MZ2-910ZA
Guide (Ref #10)
10
Part #64216-MT4-880
Cover, cowl *nh1* (Ref #11)
11
Part #64220-MZ2-000ZC
Cvr *nh1* (type19) (Ref #12)
12
Part #64260-MZ2-910ZA
Pnl, screen *nh154r* (Ref #13)
13
Part #64560-MZ2-000ZA
Panel, r. *nh154r* (Ref #14)
14
Part #64580-MZ2-000ZA
Panel, l. *nh154r* (Ref #15)
15
Part #64590-MZ2-000ZA
Mirror, r. *nh1* (Ref #16)
16
Part #88110-MV9-003ZA
RUBBER (Ref #17)
17
Part #88111-MV9-000
RUBBER (Ref #17)
17
Part #88111-MV9-000
RUBBER (Ref #17)
17
Part #88111-MV9-000
RUBBER (Ref #17)
17
Part #88111-MV9-000
Mirror, l. *nh1* (Ref #18)
18
Part #88120-MV9-003ZA
Screw, pan (6x14) (Ref #20)
20
Part #90107-MM5-000
Screw, pan (6x14) (Ref #20)
20
Part #90107-MM5-000
Screw, pan (6x14) (Ref #20)
20
Part #90107-MM5-000
Screw, pan (6x14) (Ref #20)
20
Part #90107-MM5-000
Болт (Ref #21)
21
Part #90109-SB6-000
Болт (Ref #21)
21
Part #90109-SB6-000
Болт (Ref #21)
21
Part #90109-SB6-000
Болт (Ref #21)
21
Part #90109-SB6-000
Гайка (Ref #22)
22
Part #90111-KW3-003
BOLT (Ref #23)
23
Part #90111-162-000
Болт (Ref #24)
24
Part #90133-SD4-000
Болт (Ref #24)
24
Part #90133-SD4-000
Болт (Ref #24)
24
Part #90133-SD4-000
Болт (Ref #24)
24
Part #90133-SD4-000
Screw, flat socket (Ref #25)
25
Part #90125-MR5-000
Гайка (Ref #26)
26
Part #90306-SA0-000
Гайка (Ref #26)
26
Part #90306-SA0-000
Гайка (Ref #26)
26
Part #90306-SA0-000
Гайка (Ref #26)
26
Part #90306-SA0-000
Гайка (Ref #27)
27
Part #90310-SB2-003
ШАЙБА КРЕПЛЕНИЯ (Ref #29)
29
Part #90504-964-000
ДЕТАЛЬ (Ref #31)
31
Part #90683-GR1-003
Clip, cable, 20mm (Ref #32)
32
Part #90690-GHB-661
BOLT (Ref #33)
33
Part #95701-060-160-0
BOLT (Ref #33)
33
Part #95701-060-160-0
BOLT (Ref #33)
33
Part #95701-060-160-0
BOLT (Ref #33)
33
Part #95701-060-160-0
BOLT (Ref #34)
34
Part #95701-060-250-8
BOLT (Ref #34)
34
Part #95701-060-250-8
BOLT (Ref #34)
34
Part #95701-060-250-8
BOLT (Ref #34)
34
Part #95701-060-250-8
