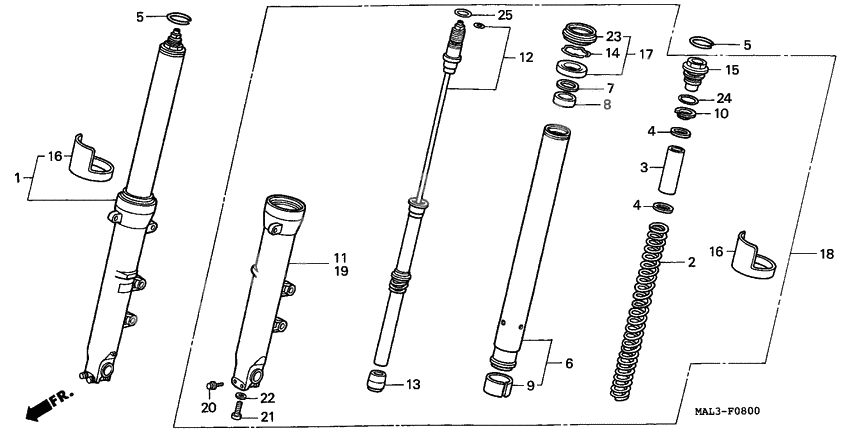

Front

Front

Front
Fork assy., r. fr. (Ref #1)
1
Part #51400-MAL-G01
Spring, fr. fork (Ref #2)
2
Part #51401-MAL-G01
Collar, spring (Ref #3)
3
Part #51402-MS2-003
Пружина (Ref #4)
4
Part #51403-KF0-003
Пружина (Ref #4)
4
Part #51403-KF0-003
Пружина (Ref #4)
4
Part #51403-KF0-003
Пружина (Ref #4)
4
Part #51403-KF0-003
Кольцо (Ref #5)
5
Part #51405-MB4-003
Кольцо (Ref #5)
5
Part #51405-MB4-003
Кольцо (Ref #5)
5
Part #51405-MB4-003
Кольцо (Ref #5)
5
Part #51405-MB4-003
Pipe, fr. fork (Ref #6)
6
Part #51410-MAL-601
Ring, back-up (Ref #7)
7
Part #51412-MB4-003
Bush, guide (Ref #8)
8
Part #51414-KCR-003
Bush, slider (Ref #9)
9
Part #51415-KCR-003
Пружина (Ref #10)
10
Part #51415-MS2-003
Case, r. (lower) (Ref #11)
11
Part #51420-MAL-G01
Damper, fr. (Ref #12)
12
Part #51430-MAL-G01
Piece, oil lock (Ref #13)
13
Part #51432-MS2-003
RING (Ref #14)
14
Part #51447-KA4-711
Bolt, fr. fork (Ref #15)
15
Part #51454-KV3-781
Protector, fork pipe (Ref #16)
16
Part #51460-MT3-611
Protector, fork pipe (Ref #16)
16
Part #51460-MT3-611
Protector, fork pipe (Ref #16)
16
Part #51460-MT3-611
Protector, fork pipe (Ref #16)
16
Part #51460-MT3-611
Seal set, fr. fork (Ref #17)
17
Part #51490-MN8-305
Fork assy., l. fr. (Ref #18)
18
Part #51500-MAL-G01
Case, l. (lower) (Ref #19)
19
Part #51520-MAL-G01
Болт (Ref #20)
20
Part #90109-MR7-000
Bolt, socket (8mm) (Ref #21)
21
Part #90116-383-721
Шайба (Ref #22)
22
Part #90544-283-000
DUST SEAL (Ref #23)
23
Part #91254-MM8-003
Прокладка (Ref #24)
24
Part #91311-PH7-003
Прокладка (Ref #25)
25
Part #91356-KF0-003
+ -
