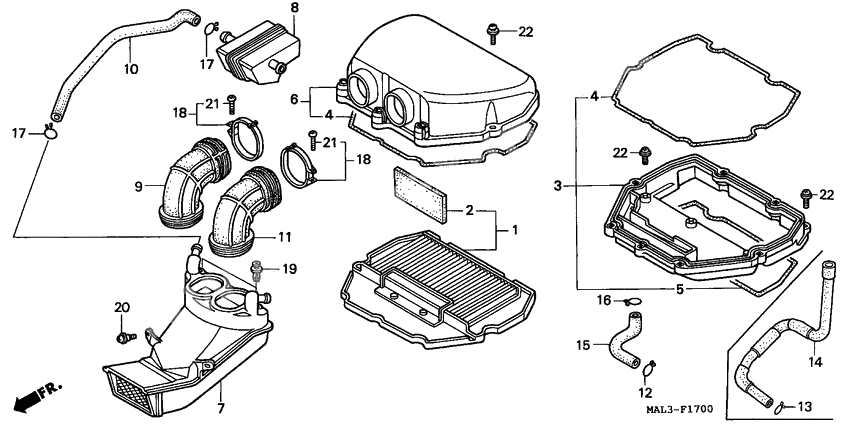

Воздушный фильтр
Воздушный фильтр
Air cleaner set (Ref #1)
1
Part #06170-MAL-600
Air cleaner b (Ref #2)
2
Part #17213-MAL-600
Housing, air cleaner (Ref #3)
3
Part #17221-MAL-E00
Seal, air cleaner (Ref #4)
4
Part #17222-MAL-600
Seal, air cleaner (Ref #4)
4
Part #17222-MAL-600
Seal, air cleaner (Ref #4)
4
Part #17222-MAL-600
Seal, air cleaner (Ref #4)
4
Part #17222-MAL-600
Seal, a/clnr hsg (Ref #5)
5
Part #17223-MV9-300
Cover, a/clnr hsg (Ref #6)
6
Part #17231-MAL-600
Канал (Ref #7)
7
Part #17241-MAL-E00
Filter assy., air (Ref #8)
8
Part #17250-MAL-600
Duct, r. (Ref #9)
9
Part #17251-MAL-600
Tube, air filter (Ref #10)
10
Part #17268-MAL-600
Duct, l. (Ref #11)
11
Part #17281-MAL-600
Clip, breather tube (Ref #12)
12
Part #17316-611-000
Tube, breather (Ref #15)
15
Part #17554-MAL-600
CLIP (Ref #16)
16
Part #17724-102-700
Clip, air hose (19) (Ref #17)
17
Part #18533-634-670
Clip, air hose (19) (Ref #17)
17
Part #18533-634-670
Clip, air hose (19) (Ref #17)
17
Part #18533-634-670
Clip, air hose (19) (Ref #17)
17
Part #18533-634-670
BAND (Ref #18)
18
Part #90651-MAL-600
BAND (Ref #18)
18
Part #90651-MAL-600
BAND (Ref #18)
18
Part #90651-MAL-600
BAND (Ref #18)
18
Part #90651-MAL-600
ДЕТАЛЬ (Ref #19)
19
Part #90683-GR1-003
Screw, pan (5x11.5) (Ref #20)
20
Part #91509-KY4-900
Screw, pan, 4x25 (Ref #21)
21
Part #93500-040250G
Screw, pan, 4x25 (Ref #21)
21
Part #93500-040250G
Screw, pan, 4x25 (Ref #21)
21
Part #93500-040250G
Screw, pan, 4x25 (Ref #21)
21
Part #93500-040250G
