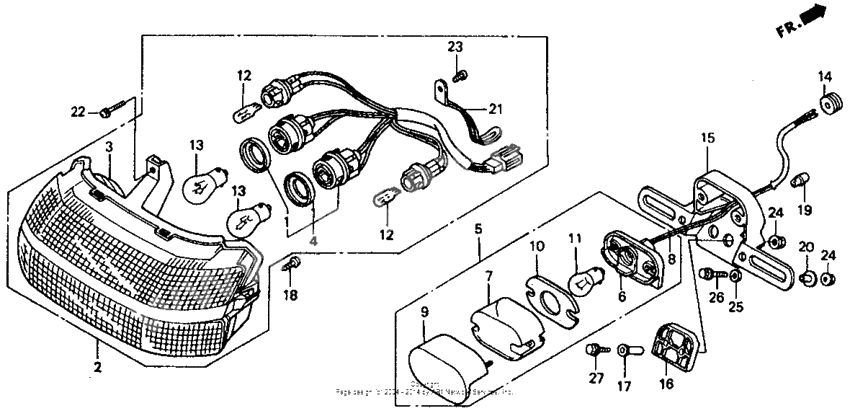

Taillight
Taillight
Прокладка (Ref #1)
1
Part #33518-SA2-003
Taillight u*r109* (Ref #2)
2
Part #33701-MS2-670ZC
Taillight *nh193p* (Ref #2)
2
Part #33701-MS2-670ZB
T/lght sub *r109* (Ref #3)
3
Part #33703-MS2-670ZB
T/lght sub *nh287m* (Ref #3)
3
Part #33703-MS2-670ZA
Socket, taillight (Ref #4)
4
Part #33705-MS2-670
Light assy. (12v 8w) (Ref #5)
5
Part #33720-ML7-670
Основание (Ref #6)
6
Part #33721-MB2-003
Lens, license (Ref #7)
7
Part #33722-MB1-013
Wire, license (Ref #8)
8
Part #33725-ML7-670
Cover, license light (Ref #9)
9
Part #33727-ME4-671
Прокладка (Ref #10)
10
Part #33729-MB1-003
Bulb (Ref #11)
11
Part #34909-505-003
Bulb (Ref #12)
12
Part #34901-671-671
Bulb (Ref #12)
12
Part #34901-671-671
Bulb (Ref #12)
12
Part #34901-671-671
Bulb (Ref #12)
12
Part #34901-671-671
Bulb (12v27/7w) (Ref #13)
13
Part #34906-MG9-771
Bulb (12v27/7w) (Ref #13)
13
Part #34906-MG9-771
Bulb (12v27/7w) (Ref #13)
13
Part #34906-MG9-771
Bulb (12v27/7w) (Ref #13)
13
Part #34906-MG9-771
Grommet, wire cord (Ref #14)
14
Part #80102-323-000
Brkt, number plate (Ref #15)
15
Part #84701-ML7-670
Кольцо/шайба (Ref #16)
16
Part #84702-MS2-670
Кольцо/шайба (Ref #16)
16
Part #84702-MS2-670
Кольцо/шайба (Ref #16)
16
Part #84702-MS2-670
Кольцо/шайба (Ref #16)
16
Part #84702-MS2-670
COLLAR (Ref #17)
17
Part #84703-MS2-670
Nut, special (4mm) (Ref #19)
19
Part #90302-MB2-000
Washer, 6x20 (Ref #20)
20
Part #90502-VA4-640
CLIP (Ref #21)
21
Part #91417-PA1-010
Screw-washer (Ref #22)
22
Part #93893-040-120-7
Screw, tapping, 5x8 (Ref #23)
23
Part #9390135020
Гайка (Ref #24)
24
Part #94050-06000
Гайка (Ref #24)
24
Part #94050-06000
Гайка (Ref #24)
24
Part #94050-06000
Гайка (Ref #24)
24
Part #94050-06000
Шайба (Ref #25)
25
Part #94103-06000
BOLT (Ref #26)
26
Part #95701-060-160-0
Bolt, flange, 6x35 (Ref #27)
27
Part #95701-0603500
