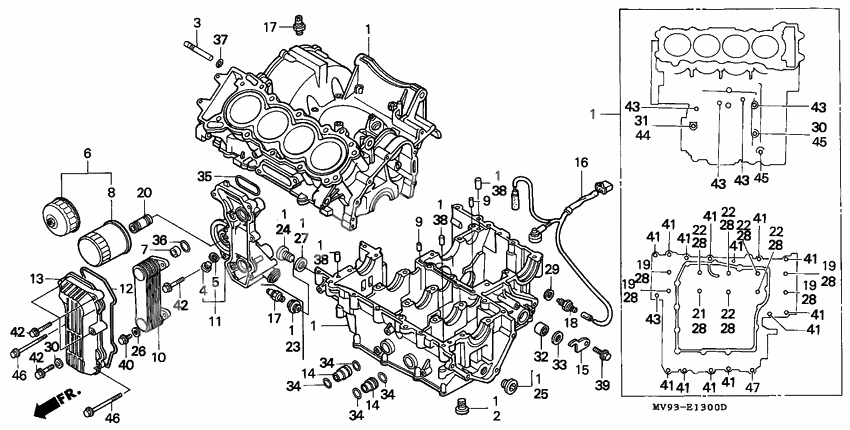

Crankcase set
Crankcase set
Ресивер (Ref #3)
3
Part #11208-MAL-600
Bolt, sealing (18mm) (Ref #4)
4
Part #12206-ML8-300
Washer, sealing bolt (Ref #5)
5
Part #12207-611-300
Filter set, oil (Ref #6)
6
Part #15010-MCE-H51
Collar (20mm) (Ref #7)
7
Part #15328-MV9-670
Фильтр масляный (Ref #8)
8
Part #15410-MFJ-D01
Ресивер (Ref #9)
9
Part #11104-MW0-000
Ресивер (Ref #9)
9
Part #11104-MW0-000
Ресивер (Ref #9)
9
Part #11104-MW0-000
Ресивер (Ref #9)
9
Part #11104-MW0-000
Core, oil cooler (Ref #10)
10
Part #15600-MAL-601
Body, oil cooler (Ref #11)
11
Part #15610-MAL-600
Прокладка (Ref #12)
12
Part #15615-MV9-670
Cover, oil cooler (Ref #13)
13
Part #15621-MV9-670
Collar, oil cooler (Ref #14)
14
Part #15622-MV9-670
Collar, oil cooler (Ref #14)
14
Part #15622-MV9-670
Collar, oil cooler (Ref #14)
14
Part #15622-MV9-670
Collar, oil cooler (Ref #14)
14
Part #15622-MV9-670
Plate, spindle (Ref #15)
15
Part #24612-MAL-600
Sub-wire a (Ref #16)
16
Part #32101-MAL-600
Переключатель прессуры масла (Ref #17)
17
Part #35500-MJ4-024
Переключатель прессуры масла (Ref #17)
17
Part #35500-MJ4-024
Переключатель прессуры масла (Ref #17)
17
Part #35500-MJ4-024
Переключатель прессуры масла (Ref #17)
17
Part #35500-MJ4-024
Sw.assy,neutral (Ref #18)
18
Part #35600-KE8-003
Boss, oil filter (Ref #20)
20
Part #90019-MB0-000
Bolt, ubs (8x88) (Ref #21)
21
Part #90024-MAL-A00
Bolt, sealing (20mm) (Ref #23)
23
Part #90048-MAL-600
BOLT (Ref #25)
25
Part #12208-PR3-000
Washer, plain, 6.5x15 (Ref #26)
26
Part #90401-ZA0-000
Шайба (Ref #27)
27
Part #90441-MN5-000
Washer, neutral (Ref #29)
29
Part #90443-MJ6-000
Шайба (Ref #30)
30
Part #90463-ML7-000
Шайба (Ref #30)
30
Part #90463-ML7-000
Шайба (Ref #30)
30
Part #90463-ML7-000
Шайба (Ref #30)
30
Part #90463-ML7-000
Bearing (14x22x16) (Ref #32)
32
Part #91106-KM1-013
Oil seal (14x22x5) (Ref #33)
33
Part #91203-KA4-771
Прокладка (Ref #35)
35
Part #91305-KK3-830
Прокладка (Ref #36)
36
Part #91310-PH7-000
Прокладка (Ref #37)
37
Part #91315-PC9-004
BOLT (Ref #39)
39
Part #95701-060-140-0
BOLT (Ref #40)
40
Part #95701-060-200-0
Bolt, flange, 8x65 (Ref #44)
44
Part #95701-0806500
Bolt, flange, 6x65 (Ref #45)
45
Part #95701-0606500
Bolt, flange, 6x65 (Ref #45)
45
Part #95701-0606500
Bolt, flange, 6x65 (Ref #45)
45
Part #95701-0606500
Bolt, flange, 6x65 (Ref #45)
45
Part #95701-0606500
Bolt, flange, 6x90 (Ref #46)
46
Part #95701-0609000
Bolt, flange, 6x90 (Ref #46)
46
Part #95701-0609000
Bolt, flange, 6x90 (Ref #46)
46
Part #95701-0609000
Bolt, flange, 6x90 (Ref #46)
46
Part #95701-0609000
Bolt, flange, 10x75 (Ref #47)
47
Part #95701-1007500
