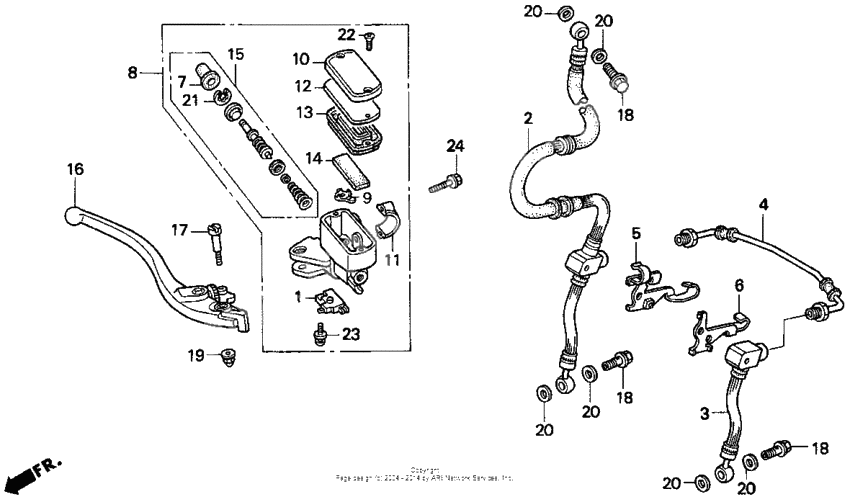

F3 fr. brake master cyl. 95-96
F3 fr. brake master cyl. 95-96
Switch, fr. stop (Ref #1)
1
Part #35340-MM5-600
Hose, r. fr. brake (Ref #2)
2
Part #45124-MAL-601
Hose, l. fr. brake (Ref #3)
3
Part #45125-MAL-601
Pipe, fr. brake (Ref #4)
4
Part #45135-MAL-600
Stay, r. fr. (Ref #5)
5
Part #45156-MAL-600
Stay, l. fr. (Ref #6)
6
Part #45157-MAL-600
Ботинок (Ref #7)
7
Part #45504-410-003
M/cyl sub-assy, fr. (Ref #8)
8
Part #45510-MV9-305
PROTECTOR (Ref #9)
9
Part #45512-MA6-006
Cap, master cylinder (Ref #10)
10
Part #45513-MM5-016
HOLDER (Ref #11)
11
Part #45517-166-006
Пластина (Ref #12)
12
Part #45518-MM5-006
DIAPHRAGM (Ref #13)
13
Part #45520-MM5-006
Float, fr. (Ref #14)
14
Part #45523-MV9-006
Master cylinder set (Ref #15)
15
Part #45530-471-831
Lever, r. handle (Ref #16)
16
Part #53170-MW0-006
Bolt, r (Ref #17)
17
Part #90114-MA5-671
Nut, cap, 6mm (Ref #19)
19
Part #90201-415-000
Circlip (Ref #21)
21
Part #90651-MA5-671
Болт (Ref #22)
22
Part #93600-040120G
Screw-washer (Ref #23)
23
Part #93893-040-120-7
Болт (Ref #24)
24
Part #96001-0602207
