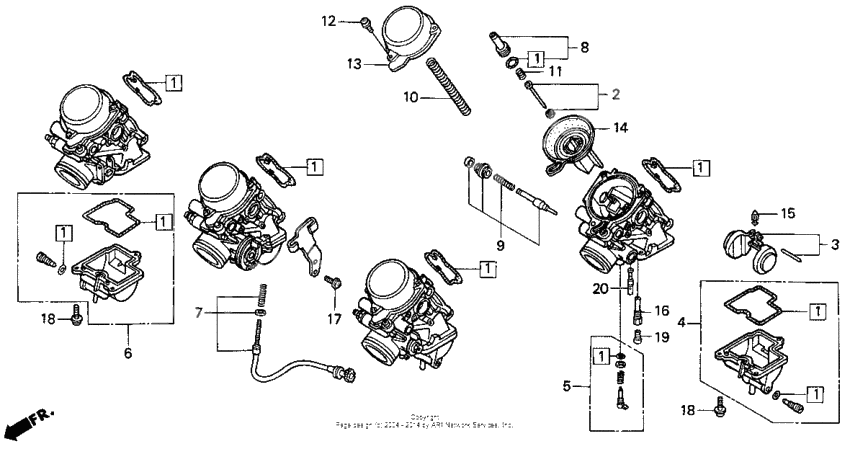

F2 carburetor components 91-94
F2 carburetor components 91-94
Needle set, jet (Ref #2)
2
Part #16012-MV9-670
FLOAT SET (Ref #3)
3
Part #16013-MAS-600
Chamber set, float (Ref #4)
4
Part #16015-MV9-670
Screw set (Ref #5)
5
Part #16016-MAS-670
Chamber set, float (Ref #6)
6
Part #16023-MV9-670
Screw set (Ref #7)
7
Part #16029-MV9-670
Plate set, valve (Ref #8)
8
Part #16037-MY5-850
Valve set, starter (Ref #9)
9
Part #16046-MV9-670
Valve set, starter (Ref #9)
9
Part #16046-MY5-850
Пружина (Ref #10)
10
Part #16050-MV9-670
Пружина (Ref #11)
11
Part #16051-MV4-000
Screw, pan (Ref #12)
12
Part #16080-MV4-000
Верх (Ref #13)
13
Part #16107-MV4-000
Piston, vacuum (Ref #14)
14
Part #16111-MV9-670
Клапан (Ref #15)
15
Part #16155-MN9-004
Holder, needle jet (Ref #16)
16
Part #16165-MN4-013
Screw-washer, 5x10 (Ref #17)
17
Part #93892-0501000
Screw-washer, 5x16 (Ref #18)
18
Part #93892-0501600
Screw-washer, 5x16 (Ref #18)
18
Part #93892-0501600
Screw-washer, 5x16 (Ref #18)
18
Part #93892-0501600
Screw-washer, 5x16 (Ref #18)
18
Part #93892-0501600
Jet (#135) (Ref #19)
19
Part #99101-KPE1350
Жиклер (Ref #20)
20
Part #99103-MV9-0380
-
-
Цена: 2 100.00 р.
Доступно: 0
-
