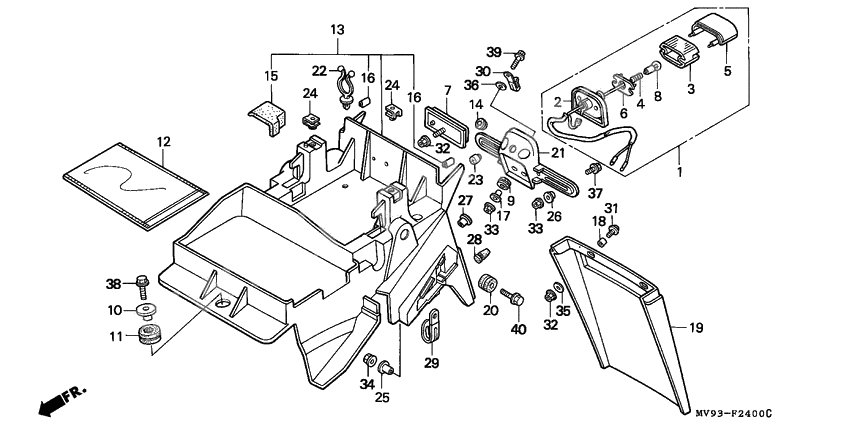

Rear fender
Rear fender
Reflector, reflex (stanley) (Ref #7)
7
Part #33741-MS6-921
Collar, setting (Ref #10)
10
Part #61104-422-000
Rubber, side shelter (Ref #11)
11
Part #64122-KV0-000
Bag, service book (Ref #12)
12
Part #77251-342-000
Fender,a rr. (Ref #13)
13
Part #80101-MV9-600
Molding, rr. fender (Ref #16)
16
Part #80104-MV4-300
Molding, rr. fender (Ref #16)
16
Part #80104-MV4-300
Molding, rr. fender (Ref #16)
16
Part #80104-MV4-300
Molding, rr. fender (Ref #16)
16
Part #80104-MV4-300
Rubber, rr. fender (Ref #20)
20
Part #80152-958-680
Струбцина проводки (Ref #22)
22
Part #90119-HA7-670
Nut, clip (6mm) (Ref #24)
24
Part #90305-GK8-000
Nut, clip (6mm) (Ref #24)
24
Part #90305-GK8-000
Nut, clip (6mm) (Ref #24)
24
Part #90305-GK8-000
Nut, clip (6mm) (Ref #24)
24
Part #90305-GK8-000
COLLAR (Ref #25)
25
Part #90370-SC3-960
Гайка (Ref #32)
32
Part #94050-05000
Гайка (Ref #32)
32
Part #94050-05000
Гайка (Ref #32)
32
Part #94050-05000
Гайка (Ref #32)
32
Part #94050-05000
Гайка (Ref #34)
34
Part #94050-08000
BOLT (Ref #38)
38
Part #95701-060-200-7
Болт (Ref #40)
40
Part #95801-0803200
