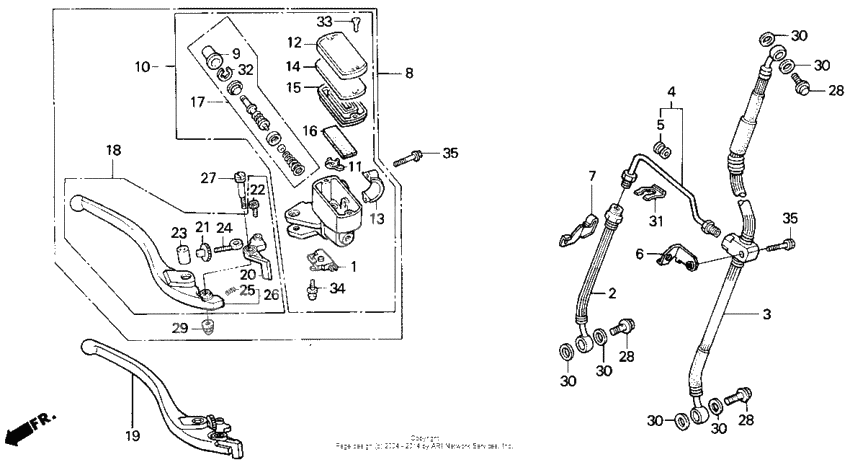

F2 fr. brake master cyl. 91-94
F2 fr. brake master cyl. 91-94
Switch, fr. stop (Ref #1)
1
Part #35340-MM5-600
Hose, r. fr. brake (Ref #2)
2
Part #45124-MV9-003
Hose, fr. brake (Ref #3)
3
Part #45125-MV9-003
Pipe, fr. brake (Ref #4)
4
Part #45127-MV9-000
Grommet, brake pipe (Ref #5)
5
Part #45137-MV9-000
Stay, fr. brake hose (Ref #6)
6
Part #45156-MV9-000
Clamp, r. fr. (Ref #7)
7
Part #45157-MV9-000
Master cylinder, fr. (Ref #8)
8
Part #45500-MV9-006
Ботинок (Ref #9)
9
Part #45504-410-003
PROTECTOR (Ref #11)
11
Part #45512-MA6-006
Cap, master cylinder (Ref #12)
12
Part #45513-MM5-016
HOLDER (Ref #13)
13
Part #45517-166-006
Пластина (Ref #14)
14
Part #45518-MM5-006
DIAPHRAGM (Ref #15)
15
Part #45520-MM5-006
Float, fr. (Ref #16)
16
Part #45523-MV9-006
Master cylinder set (Ref #17)
17
Part #45530-471-831
Lever, r. handle (Ref #18)
18
Part #53170-MW0-006
Knocker (Ref #20)
20
Part #53171-MJ4-701
Adjuster, r. (Ref #21)
21
Part #53172-KV0-006
Bolt (5x5) (Ref #22)
22
Part #53177-KV0-006
Joint, lever (Ref #23)
23
Part #53179-KV0-006
Bolt, adjusting (Ref #24)
24
Part #53180-KV0-006
Spring, handlebar (Ref #25)
25
Part #53181-KV0-006
Lever set, r. handle (Ref #26)
26
Part #53185-KV0-006
Bolt, r (Ref #27)
27
Part #90114-MA5-671
Nut, cap, 6mm (Ref #29)
29
Part #90201-415-000
Clip, brake hose (Ref #31)
31
Part #90651-KV3-000
Circlip (Ref #32)
32
Part #90651-MA5-671
Болт (Ref #33)
33
Part #93600-040120G
Screw-washer (Ref #34)
34
Part #93893-040-120-8
Болт (Ref #35)
35
Part #96001-0602207
Болт (Ref #35)
35
Part #96001-0602207
Болт (Ref #35)
35
Part #96001-0602207
Болт (Ref #35)
35
Part #96001-0602207
