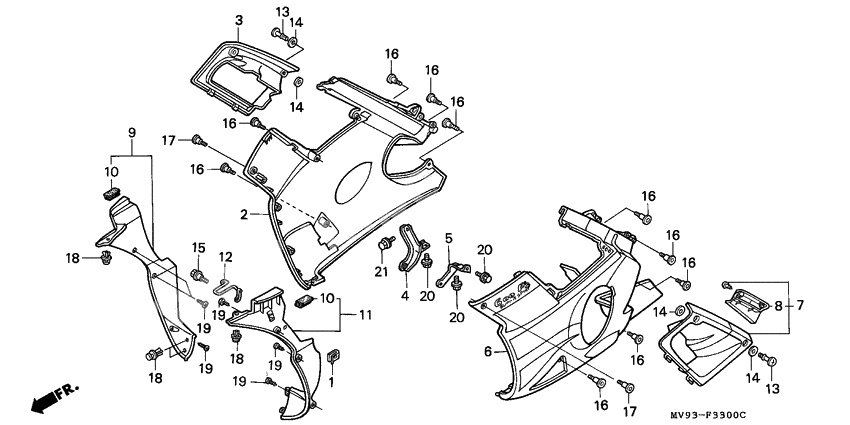

Lower cowl
Lower cowl
PLATE (Ref #1)
1
Part #61317-KG0-000
Cowl set *nh1/rp124* (Ref #2)
2
Part #64301-MV9-830ZA
Cowl *r134* (type10) (Ref #2)
2
Part #64301-MV9-630ZA
Lid set *nh1/rp124* (Ref #3)
3
Part #64304-MV9-630ZB
Lid set, r. *r134* (Ref #3)
3
Part #64304-MV9-630ZA
Stay, r. cowl (Ref #4)
4
Part #64340-MV9-000
Stay, l. cowl (Ref #5)
5
Part #64345-MV9-000
Cowl, l. (type11) (Ref #6)
6
Part #64351-MV9-830ZA
Cowl, l. (type10) (Ref #6)
6
Part #64351-MV9-630ZA
Lid set, l. (type11) (Ref #7)
7
Part #64354-MV9-630ZB
Lid set, l. (type10) (Ref #7)
7
Part #64354-MV9-630ZA
Duct, l. air (Ref #8)
8
Part #64356-MV9-300
Cowl, r. *nh1* (Ref #9)
9
Part #64360-MV9-000ZC
Cowl, r. *r134* (Ref #9)
9
Part #64360-MV9-000ZD
Rubber, cowl (inner) (Ref #10)
10
Part #64365-MV9-300
Rubber, cowl (inner) (Ref #10)
10
Part #64365-MV9-300
Rubber, cowl (inner) (Ref #10)
10
Part #64365-MV9-300
Rubber, cowl (inner) (Ref #10)
10
Part #64365-MV9-300
Cowl, l. *nh1* (Ref #11)
11
Part #64410-MV9-000ZC
Cowl, l. *r134* (Ref #11)
11
Part #64410-MV9-000ZD
Guide (Ref #12)
12
Part #64411-MV9-000
Болт (Ref #13)
13
Part #64507-MN4-000
Болт (Ref #13)
13
Part #64507-MN4-000
Болт (Ref #13)
13
Part #64507-MN4-000
Болт (Ref #13)
13
Part #64507-MN4-000
Болт (Ref #15)
15
Part #90020-438-000
Screw, pan (6x14) (Ref #17)
17
Part #90113-MM5-000
Screw, pan (6x14) (Ref #17)
17
Part #90113-MM5-000
Screw, pan (6x14) (Ref #17)
17
Part #90113-MM5-000
Screw, pan (6x14) (Ref #17)
17
Part #90113-MM5-000
