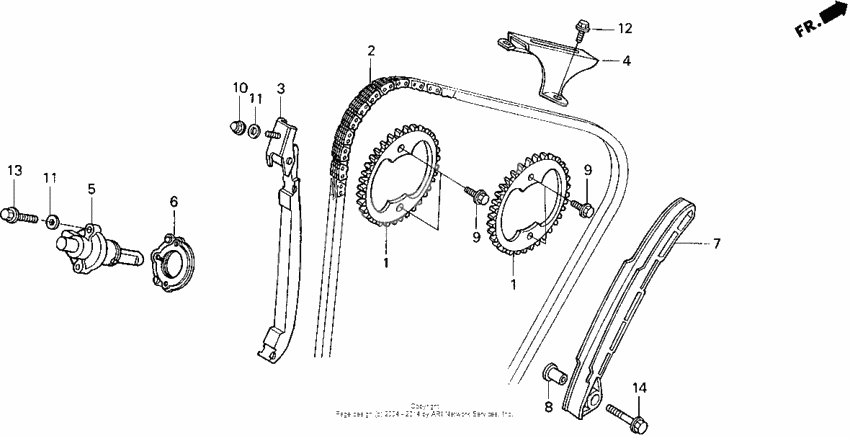

F2 cam chain 91-94
F2 cam chain 91-94
Sprocket, cam (Ref #1)
1
Part #14321-MAL-A00
Sprocket, cam (Ref #1)
1
Part #14321-MAL-A00
Sprocket, cam (Ref #1)
1
Part #14321-MAL-A00
Sprocket, cam (Ref #1)
1
Part #14321-MAL-A00
ЦЕПЬ ГРМ (116L) (Ref #2)
2
Part #14401-MEE-003
Tensioner, cam chain (Ref #3)
3
Part #14510-MV9-671
Guide b, cam chain (Ref #4)
4
Part #14546-MV9-930
Adjuster, cam chain (Ref #5)
5
Part #14550-MV9-671
Gasket,cam chain (Ref #6)
6
Part #14560-MV9-505
Guide, cam chain (Ref #7)
7
Part #14620-MV9-671
Collar (8mm) (Ref #8)
8
Part #14626-MV9-670
Bolt (7x10.5) (Ref #9)
9
Part #90082-HA0-000
Bolt (7x10.5) (Ref #9)
9
Part #90082-HA0-000
Bolt (7x10.5) (Ref #9)
9
Part #90082-HA0-000
Bolt (7x10.5) (Ref #9)
9
Part #90082-HA0-000
Nut, cap, 6mm (Ref #10)
10
Part #90201-415-000
Шайба (Ref #11)
11
Part #90463-ML7-000
Шайба (Ref #11)
11
Part #90463-ML7-000
Шайба (Ref #11)
11
Part #90463-ML7-000
Шайба (Ref #11)
11
Part #90463-ML7-000
BOLT (Ref #12)
12
Part #95701-060-140-0
Bolt, flange, 6x22 (Ref #13)
13
Part #95701-0602200
Болт (Ref #14)
14
Part #95801-0803200
