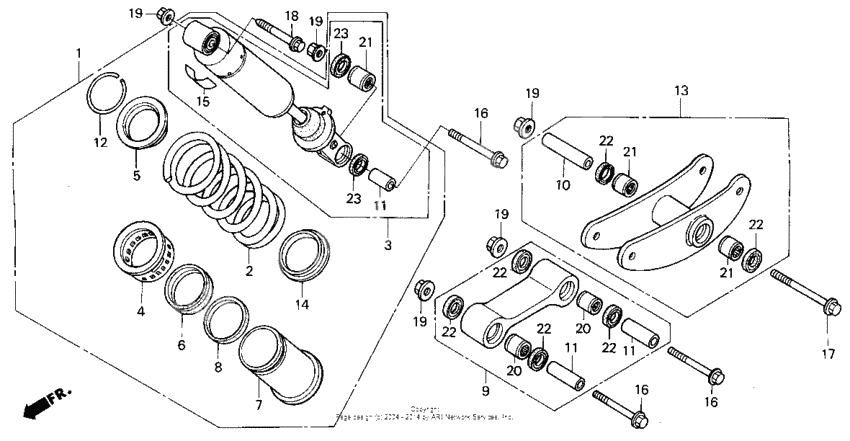

F2 rear shock absorber 91-93
F2 rear shock absorber 91-93
Shock absorber, rr. (Ref #1)
1
Part #52400-MV9-003
Spring, rr. shock (Ref #2)
2
Part #52401-MV9-003
Damper set, rr. (Ref #3)
3
Part #52409-MV9-305
Adjuster, spring (Ref #4)
4
Part #52422-KT8-013
Seat b, spring (Ref #5)
5
Part #52450-KT8-003
DUST SEAL (Ref #6)
6
Part #52457-ML7-003
Направляющая (Ref #7)
7
Part #52458-KT8-013
GROMMET (Ref #8)
8
Part #52459-KT8-003
ROD ASSY (Ref #9)
9
Part #52460-KV3-830
COLLAR (Ref #10)
10
Part #52463-KM3-000
Кольцо (Ref #12)
12
Part #52464-ML7-003
Arm, shock absorber (Ref #13)
13
Part #52470-MV9-000
Пружина (Ref #14)
14
Part #52486-KT8-003
Label, rr. (Ref #15)
15
Part #87516-MBL-610
Болт (Ref #17)
17
Part #90107-969-000
Болт (Ref #18)
18
Part #90120-HC4-000
Bearing (17x24x25) (Ref #20)
20
Part #91072-MJ0-003
Bearing (17x24x25) (Ref #20)
20
Part #91072-MJ0-003
Bearing (17x24x25) (Ref #20)
20
Part #91072-MJ0-003
Bearing (17x24x25) (Ref #20)
20
Part #91072-MJ0-003
Oil seal (17x27x5) (Ref #23)
23
Part #91202-HC5-005
Oil seal (17x27x5) (Ref #23)
23
Part #91202-HC5-005
Oil seal (17x27x5) (Ref #23)
23
Part #91202-HC5-005
Oil seal (17x27x5) (Ref #23)
23
Part #91202-HC5-005
