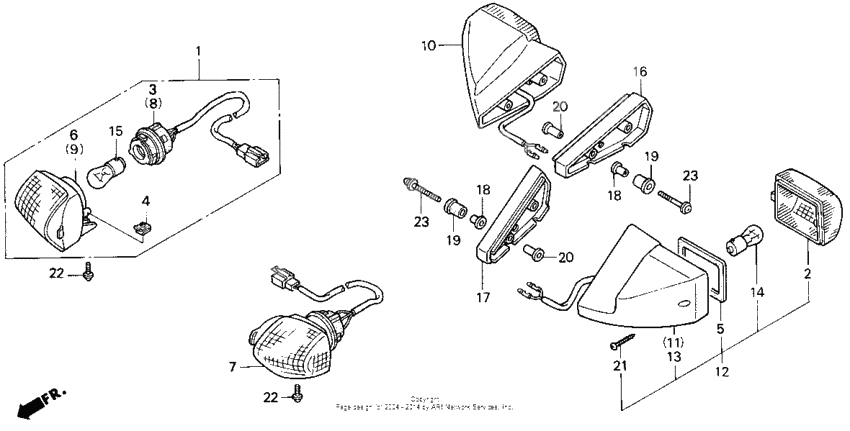

F2 turn signal 91-94
F2 turn signal 91-94
Turn signal assy. (Ref #1)
1
Part #33400-MV9-671
Lens, turn signal (Ref #2)
2
Part #33402-MGW-305
Socket, r. fr. (Ref #3)
3
Part #33405-MV9-671
Гайка специальная (Ref #4)
4
Part #33407-MB2-003
Прокладка (Ref #5)
5
Part #33407-MM5-003
Turn signal sub, r. (Ref #6)
6
Part #33410-MV9-601
Turn signal assy. (Ref #7)
7
Part #33450-MV9-671
Socket, l. fr. (Ref #8)
8
Part #33455-MV9-671
Turn signal sub, l. (Ref #9)
9
Part #33460-MV9-601
Turn signal assy. (Ref #10)
10
Part #33600-ML7-980
Base, r. rr. (Ref #11)
11
Part #33604-ML7-980
Turn signal assy. (Ref #12)
12
Part #33650-MV9-670
Base, l. rr. (Ref #13)
13
Part #33654-MV9-670
Bulb (12v23w32cp) (Ref #14)
14
Part #34905-268-671
Bulb (12v23/8w) (Ref #15)
15
Part #34905-425-671
Spacer, r. rr. (Ref #16)
16
Part #80102-MM5-710
Spacer, l. rr. (Ref #17)
17
Part #80103-MM5-710
COLLAR (Ref #18)
18
Part #80125-MM5-000
COLLAR (Ref #18)
18
Part #80125-MM5-000
COLLAR (Ref #18)
18
Part #80125-MM5-000
COLLAR (Ref #18)
18
Part #80125-MM5-000
RUBBER (Ref #19)
19
Part #80126-MM5-000
RUBBER (Ref #19)
19
Part #80126-MM5-000
RUBBER (Ref #19)
19
Part #80126-MM5-000
RUBBER (Ref #19)
19
Part #80126-MM5-000
Collar a (Ref #20)
20
Part #80135-MM5-000
Collar a (Ref #20)
20
Part #80135-MM5-000
Collar a (Ref #20)
20
Part #80135-MM5-000
Collar a (Ref #20)
20
Part #80135-MM5-000
Screw, tap (3x30) (Ref #21)
21
Part #90157-MV9-600
Screw-washer (Ref #22)
22
Part #93891-040-120-7
Screw-washer (Ref #22)
22
Part #93891-040-120-7
Screw-washer (Ref #22)
22
Part #93891-040-120-7
Screw-washer (Ref #22)
22
Part #93891-040-120-7
Screw-washer (5x45) (Ref #23)
23
Part #93894-0504500
Screw-washer (5x45) (Ref #23)
23
Part #93894-0504500
Screw-washer (5x45) (Ref #23)
23
Part #93894-0504500
Screw-washer (5x45) (Ref #23)
23
Part #93894-0504500
