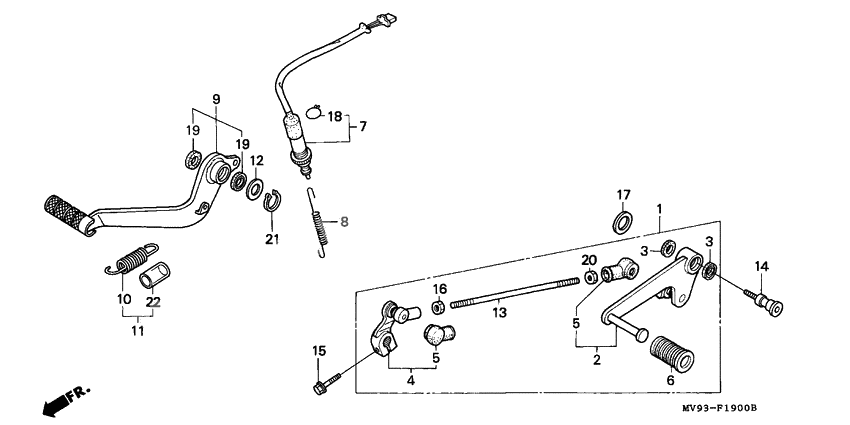

Brake pedal/change pedal
Brake pedal/change pedal
Pedal assy., change (Ref #1)
1
Part #24700-MV9-000
Pedal, gearshift (Ref #2)
2
Part #24705-MV9-000
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Arm, change (Ref #4)
4
Part #24710-MV9-000
Пыльник (Ref #5)
5
Part #24724-422-000
Пыльник (Ref #5)
5
Part #24724-422-000
Пыльник (Ref #5)
5
Part #24724-422-000
Пыльник (Ref #5)
5
Part #24724-422-000
Rubber, change pedal (Ref #6)
6
Part #24781-KR3-770
Switch, rr. stop (Ref #7)
7
Part #35350-KA2-405
Spring, stop switch (Ref #8)
8
Part #35357-KE1-000
Pedal, rr. brake (Ref #9)
9
Part #46500-MV9-930
Spring, brake pedal (Ref #10)
10
Part #46511-MV9-000
Bush, washer (Ref #12)
12
Part #53312-657-000
Bolt, tie rod (Ref #13)
13
Part #90065-MV9-000
Bolt, change pivot (Ref #14)
14
Part #90115-KAF-000
Болт (Ref #15)
15
Part #90118-KY1-000
Nut, governor arm fixing (left hand thread) (Ref #16)
16
Part #90201-700-000
Washer, 8mm (Ref #17)
17
Part #90514-921-000
Clip, switch cover (Ref #18)
18
Part #90601-KAF-003
DUST SEAL (Ref #19)
19
Part #91251-444-000
DUST SEAL (Ref #19)
19
Part #91251-444-000
DUST SEAL (Ref #19)
19
Part #91251-444-000
DUST SEAL (Ref #19)
19
Part #91251-444-000
Nut, hex. (6mm) (Ref #20)
20
Part #94002-060200S
Circlip, external, 15mm (Ref #21)
21
Part #9451115000
Tube,vinyl,13x15x (Ref #22)
22
Part #95003-430-022-0
-
1690201-700-000
Nut, governor arm fixing (left hand thread)
1Доступно: Нет в наличии
