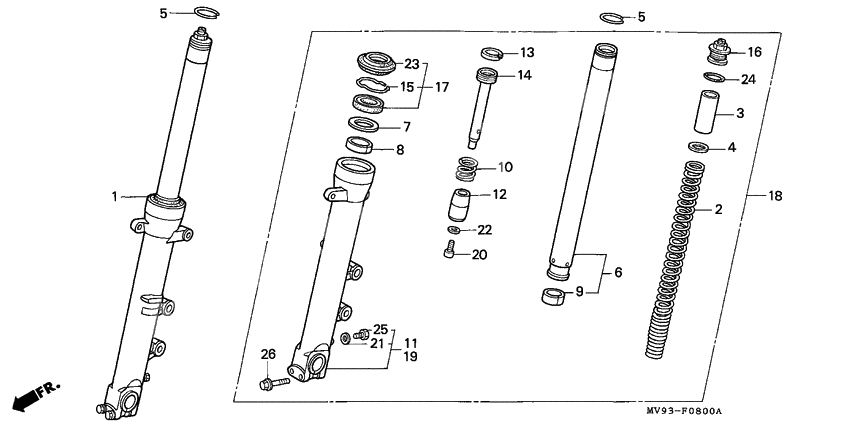

Front 1

Front 1

Front 1
Fork assy., r. fr. (Ref #1)
1
Part #51400-MV9-003
Spring, fr. fork (Ref #2)
2
Part #51401-MV9-003
Collar, spring (Ref #3)
3
Part #51402-MV8-901
Пружина (Ref #4)
4
Part #51403-KF0-003
Кольцо (Ref #5)
5
Part #51405-MB4-003
Кольцо (Ref #5)
5
Part #51405-MB4-003
Кольцо (Ref #5)
5
Part #51405-MB4-003
Кольцо (Ref #5)
5
Part #51405-MB4-003
Pipe, fr. fork (Ref #6)
6
Part #51410-MV9-003
Ring, back-up (Ref #7)
7
Part #51412-MB4-003
Bush, guide (Ref #8)
8
Part #51414-KCR-003
Bush, slider (Ref #9)
9
Part #51415-KCR-003
Spring, fr. rebound (Ref #10)
10
Part #51416-KF0-003
Case, r. (lower) (Ref #11)
11
Part #51421-MV9-003
Piece, oil lock (Ref #12)
12
Part #51432-MV9-003
Кольцо поршневое (Ref #13)
13
Part #51437-KV3-701
Pipe, seat (Ref #14)
14
Part #51440-MV9-003
RING (Ref #15)
15
Part #51447-KA4-711
Bolt assy., fr. fork (Ref #16)
16
Part #51450-MR8-003
Seal set, fr. fork (Ref #17)
17
Part #51490-MN8-305
Fork assy., l. fr. (Ref #18)
18
Part #51500-MV9-003
Case, l. (lower) (Ref #19)
19
Part #51521-MV9-003
Bolt, socket (8mm) (Ref #20)
20
Part #90116-KV3-701
Gasket, fr. (Ref #21)
21
Part #90543-273-000
Шайба (Ref #22)
22
Part #90544-283-000
DUST SEAL (Ref #23)
23
Part #91254-MM8-003
Прокладка (Ref #24)
24
Part #91356-KF0-003
Bolt, hex., 6x8 (Ref #25)
25
Part #92101-06008-0A
Болт (Ref #26)
26
Part #96300-0804507
+ -
