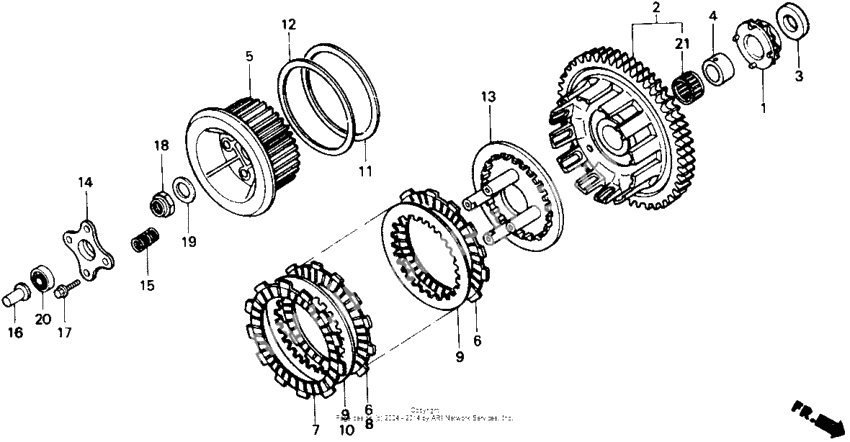

Сцепление
Сцепление
Звездочка (Ref #1)
1
Part #15131-MY9-790
Звездочка (Ref #1)
1
Part #15131-KT8-000
Clutch outer (Ref #2)
2
Part #22100-MN4-020
Collar (22x38x5.5) (Ref #3)
3
Part #22117-MN4-000
Guide, clutch (Ref #4)
4
Part #22118-MN4-000
Center, clutch (Ref #5)
5
Part #22120-MT6-600
Disk, cl friction (Ref #6)
6
Part #22201-KY2-000
Disk, cl friction (Ref #6)
6
Part #22201-KY2-000
Disk, cl friction (Ref #6)
6
Part #22201-KY2-000
Disk, cl friction (Ref #6)
6
Part #22201-KY2-000
Disk, cl friction (Ref #7)
7
Part #22201-MA7-000
Disk, cl friction (Ref #8)
8
Part #22201-MT6-601
Plate, clutch (Ref #9)
9
Part #22321-GHB-811
Plate, clutch (Ref #9)
9
Part #22321-GHB-811
Plate, clutch (Ref #9)
9
Part #22321-GHB-811
Plate, clutch (Ref #9)
9
Part #22321-GHB-811
Plate b, clutch (Ref #10)
10
Part #22322-MN4-000
Spring, clutch plate (Ref #11)
11
Part #22325-MN4-000
Seat, judder spring (Ref #12)
12
Part #22326-MN4-000
Plate, clu press (Ref #13)
13
Part #22350-MN4-000
Plate, clutch lifter (Ref #14)
14
Part #22361-MN4-010
Пружина (Ref #15)
15
Part #22401-MT6-600
Rod, clutch lifter (Ref #16)
16
Part #22847-KY2-000
Болт (Ref #17)
17
Part #90003-MM9-000
Nut, lock (20mm) (Ref #18)
18
Part #90241-KM9-000
Washer, lock (Ref #19)
19
Part #90432-121-000
Bearing (12x28x7) (Ref #20)
20
Part #91001-KA4-003
Bearing (30x37x24) (Ref #21)
21
Part #91024-MN4-003
