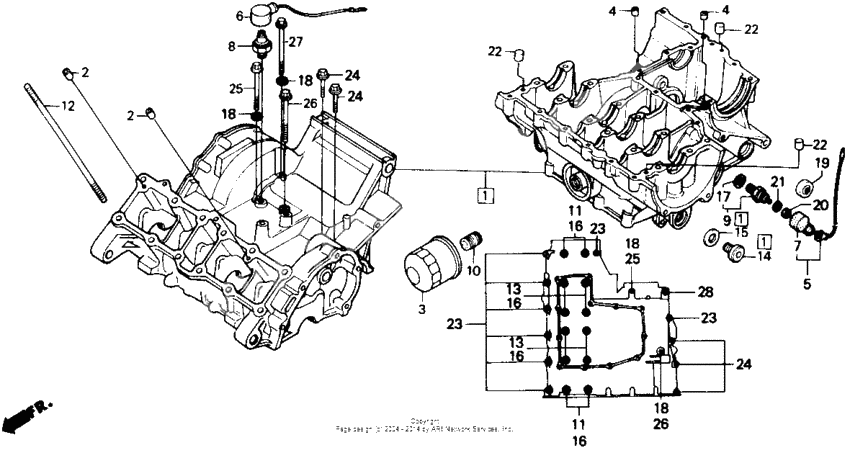

Crankcase set
Crankcase set
Ресивер (Ref #2)
2
Part #11205-KT8-000
Ресивер (Ref #2)
2
Part #11205-KT8-000
Ресивер (Ref #2)
2
Part #11205-KT8-000
Ресивер (Ref #2)
2
Part #11205-KT8-000
Фильтр масляный (Ref #3)
3
Part #15410-MFJ-D01
Ресивер (Ref #4)
4
Part #15515-KT8-000
Ресивер (Ref #4)
4
Part #15515-KT8-000
Ресивер (Ref #4)
4
Part #15515-KT8-000
Ресивер (Ref #4)
4
Part #15515-KT8-000
Sub-cable, neutral (Ref #5)
5
Part #32101-MN4-000
Sub-wire (Ref #6)
6
Part #32102-MN4-000
Cvr, neutral switch (Ref #7)
7
Part #32550-MJ6-000
Переключатель прессуры масла (Ref #8)
8
Part #35500-MJ4-024
Переключатель нейтральный (Ref #9)
9
Part #35600-MM5-003
Boss, oil filter (Ref #10)
10
Part #90019-MB0-000
Болт (Ref #11)
11
Part #90024-MJ0-000
Болт (Ref #11)
11
Part #90024-MJ0-000
Болт (Ref #11)
11
Part #90024-MJ0-000
Болт (Ref #11)
11
Part #90024-MJ0-000
Болт заклепка (Ref #12)
12
Part #90031-MN4-000
Болт (Ref #13)
13
Part #90041-MA6-000
Болт (Ref #13)
13
Part #90041-MA6-000
Болт (Ref #13)
13
Part #90041-MA6-000
Болт (Ref #13)
13
Part #90041-MA6-000
Bolt, sealing (20mm) (Ref #14)
14
Part #90048-ME5-000
Washer, sealing, 20mm (Ref #15)
15
Part #90442-ME5-000
Washer, neutral (Ref #17)
17
Part #90443-MJ6-000
Oil seal (14x22x5) (Ref #19)
19
Part #91203-KA4-771
Гайка (Ref #20)
20
Part #94001-040-000-S
Шайба (Ref #21)
21
Part #94111-04800
Болт (Ref #25)
25
Part #95701-0608000
Болт (Ref #25)
25
Part #95701-0608000
Болт (Ref #25)
25
Part #95701-0608000
Болт (Ref #25)
25
Part #95701-0608000
Bolt, flange, 6x90 (Ref #26)
26
Part #95701-0609000
Bolt, flange, 6x90 (Ref #26)
26
Part #95701-0609000
Bolt, flange, 6x90 (Ref #26)
26
Part #95701-0609000
Bolt, flange, 6x90 (Ref #26)
26
Part #95701-0609000
Bolt, flange, 6x100 (Ref #27)
27
Part #95701-0610000
Bolt, flange, 10x80 (Ref #28)
28
Part #95701-1008000
