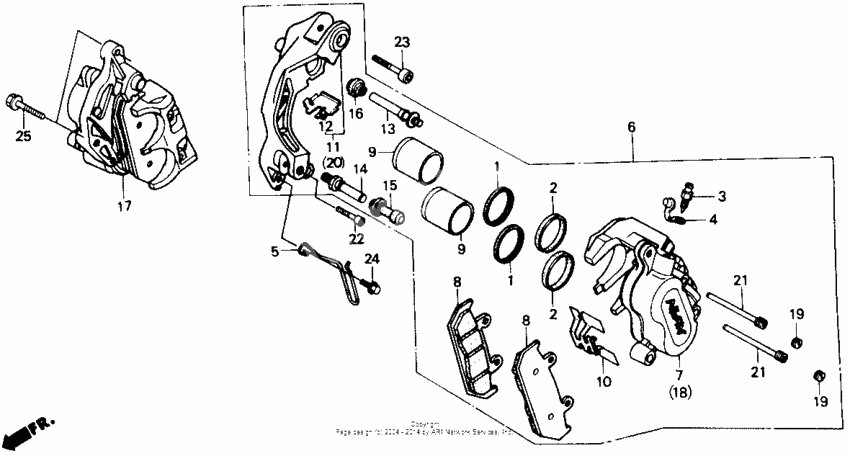

Front brake caliper

Front brake caliper

Front brake caliper
DUST SEAL (Ref #1)
1
Part #43109-MA3-006
DUST SEAL (Ref #1)
1
Part #43109-MA3-006
DUST SEAL (Ref #1)
1
Part #43109-MA3-006
DUST SEAL (Ref #1)
1
Part #43109-MA3-006
Seal, piston (Ref #2)
2
Part #43209-MA3-006
Seal, piston (Ref #2)
2
Part #43209-MA3-006
Seal, piston (Ref #2)
2
Part #43209-MA3-006
Seal, piston (Ref #2)
2
Part #43209-MA3-006
Болт (Ref #3)
3
Part #43352-568-003
CAP (Ref #4)
4
Part #43353-461-771
CLAMP (Ref #5)
5
Part #44832-ME2-000
Caliper, l. fr. (Ref #6)
6
Part #45100-MN4-833
Body, l. caliper (Ref #7)
7
Part #45101-KT8-006
Pad, fr. (Ref #8)
8
Part #45105-MN4-008
Pad, fr. (Ref #8)
8
Part #45105-MN4-008
Pad, fr. (Ref #8)
8
Part #45105-MN4-008
Pad, fr. (Ref #8)
8
Part #45105-MN4-008
PISTON (Ref #9)
9
Part #45107-MN4-016
PISTON (Ref #9)
9
Part #45107-MN4-016
PISTON (Ref #9)
9
Part #45107-MN4-016
PISTON (Ref #9)
9
Part #45107-MN4-016
Пружина (Ref #10)
10
Part #45108-ML4-006
Bracket, l (Ref #11)
11
Part #45110-MN4-831
RETAINER (Ref #12)
12
Part #45112-MG3-006
Bolt a, bolt (Ref #13)
13
Part #45131-HA5-672
Pin, bolt (Ref #14)
14
Part #45131-166-016
Bush, pin (Ref #15)
15
Part #45132-166-016
Boot b (Ref #16)
16
Part #45133-MA3-006
Caliper, r. fr. (Ref #17)
17
Part #45200-MN4-833
Body, r. caliper (Ref #18)
18
Part #45201-KT8-006
Plug, pin (Ref #19)
19
Part #45203-MG3-016
Plug, pin (Ref #19)
19
Part #45203-MG3-016
Plug, pin (Ref #19)
19
Part #45203-MG3-016
Plug, pin (Ref #19)
19
Part #45203-MG3-016
Bracket, r (Ref #20)
20
Part #45210-ML4-006
Pin, hanger (Ref #21)
21
Part #45215-KA3-732
Pin, hanger (Ref #21)
21
Part #45215-KA3-732
Pin, hanger (Ref #21)
21
Part #45215-KA3-732
Pin, hanger (Ref #21)
21
Part #45215-KA3-732
Bolt, socket (6x25) (Ref #22)
22
Part #90105-MJ1-000
Bolt, socket (8x36) (Ref #23)
23
Part #90131-ML7-000
BOLT (Ref #24)
24
Part #95701-060-100-7
Болт (Ref #25)
25
Part #96400-0803207
+ -
