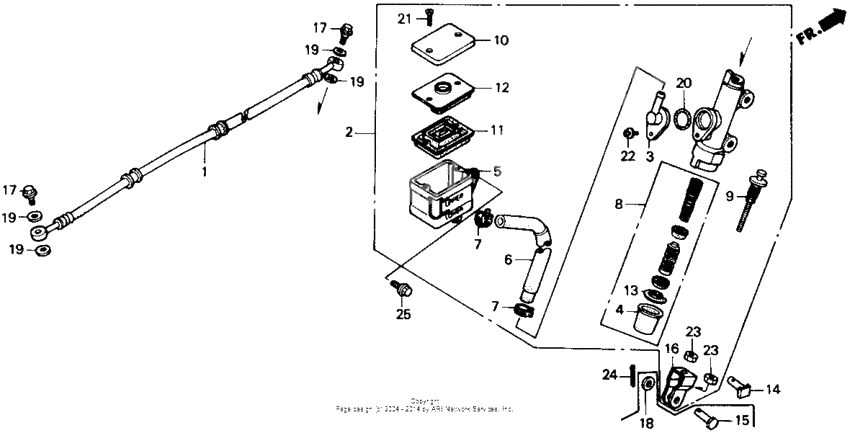

Rear brake master cylinder
Rear brake master cylinder
Hose, rr. brake (Ref #1)
1
Part #43310-MT6-871
Master cylinder, rr. (Ref #2)
2
Part #43500-MN4-006
Коннектор (Ref #3)
3
Part #43503-MB2-006
Ботинок (Ref #4)
4
Part #43504-MB2-006
Cup, oil (Ref #5)
5
Part #43511-KT8-006
HOSE (Ref #6)
6
Part #43512-KT8-006
Clamp, master cylinder oil hose (Ref #7)
7
Part #43514-445-771
Clamp, master cylinder oil hose (Ref #7)
7
Part #43514-445-771
Clamp, master cylinder oil hose (Ref #7)
7
Part #43514-445-771
Clamp, master cylinder oil hose (Ref #7)
7
Part #43514-445-771
Piston set, master c (Ref #8)
8
Part #43520-MJ6-315
Штанга (Ref #9)
9
Part #43530-MN4-006
Cap, master cylinder (Ref #10)
10
Part #45513-HR0-305
DIAPHRAGM (Ref #11)
11
Part #45520-MG7-006
Пластина (Ref #12)
12
Part #45521-HA2-006
Circlip (Ref #13)
13
Part #46182-500-013
Pin d, joint (Ref #14)
14
Part #9501554000
Joint, brake rod (Ref #16)
16
Part #46504-MB2-006
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Прокладка (Ref #20)
20
Part #91212-422-006
Screw, flat (4x40) (Ref #21)
21
Part #93600-040401G
Screw-washer (Ref #22)
22
Part #93893-040-120-8
Гайка (Ref #23)
23
Part #94002-080-000-S
Гайка (Ref #23)
23
Part #94002-080-000-S
Гайка (Ref #23)
23
Part #94002-080-000-S
Гайка (Ref #23)
23
Part #94002-080-000-S
PIN (Ref #24)
24
Part #94201-20120
BOLT (Ref #25)
25
Part #95701-060-200-0
