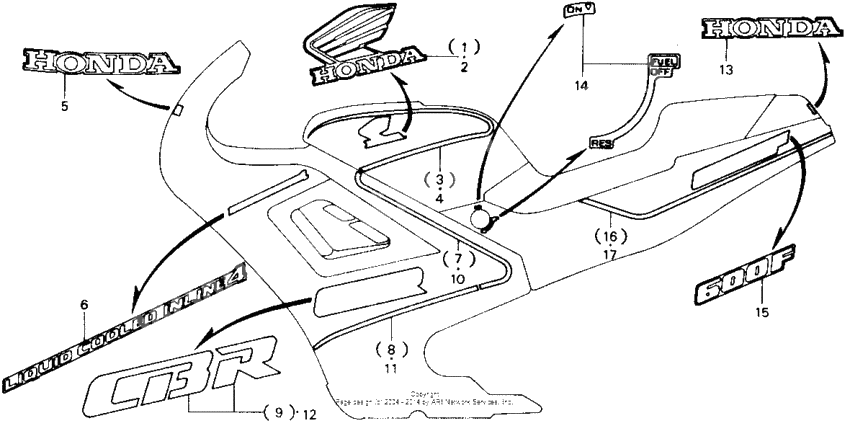

Nh193p stripe 90
Nh193p stripe 90
Mark, r. fuel tank (Ref #1)
1
Part #17507-MT6-870
Mark, l. fuel tank (Ref #2)
2
Part #17508-MT6-870
Stripe, r. fuel tank (Ref #3)
3
Part #17511-MT6-870
Stripe, l. fuel tank (Ref #4)
4
Part #17512-MT6-870
Mark a, cowl (upper) (Ref #5)
5
Part #64220-MT6-870
Mark b, cowl (upper) (Ref #6)
6
Part #64223-MT6-870
Stripe, r. cowl (Ref #7)
7
Part #64302-MT6-870
Stripe, r. cowl (Ref #8)
8
Part #64303-MT6-870
Mark, r. cowl (Ref #9)
9
Part #64305-MT6-870
Stripe, l. cowl (Ref #10)
10
Part #64352-MT6-870
Stripe, l. cowl (Ref #11)
11
Part #64353-MT6-870
Mark, l. cowl (Ref #12)
12
Part #64355-MT6-870
Mark, rr. seat cowl (Ref #13)
13
Part #77215-MT6-870
Mark (typeg) (Ref #14)
14
Part #83605-MN4-770ZA
Mark, side cover (Ref #15)
15
Part #83613-MT6-870
Stripe, r. (Ref #16)
16
Part #83615-MT6-870
Stripe, l. (Ref #17)
17
Part #83715-MT6-870
