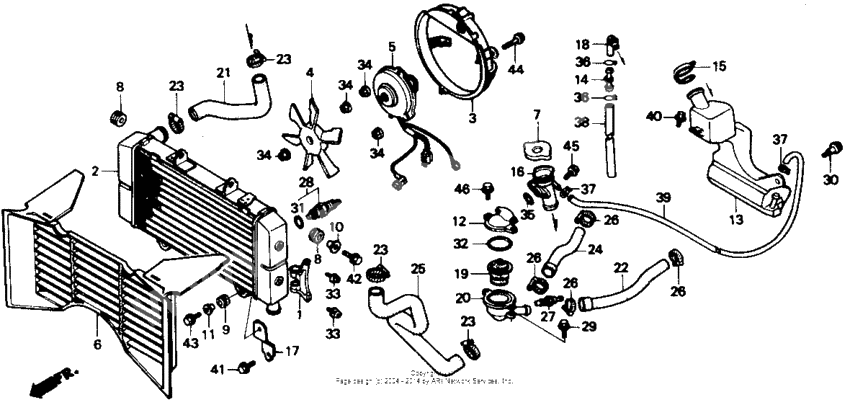

Radiator
Radiator
Струбцина шланга (Ref #1)
1
Part #15518-KT8-710
Радиатор (Ref #2)
2
Part #19010-MN4-000
SHROUD (Ref #3)
3
Part #19020-MN4-003
Fan, cooling (Ref #4)
4
Part #19025-MN4-003
Motor, fan (Ref #5)
5
Part #19030-MN4-014
Grille, radiator (Ref #6)
6
Part #19032-MT6-831
CAP (Ref #7)
7
Part #19037-KA4-701
Rubber, radiator mounting (Ref #8)
8
Part #19051-KA3-830
Rubber, radiator mounting (Ref #8)
8
Part #19051-KA3-830
Rubber, radiator mounting (Ref #8)
8
Part #19051-KA3-830
Rubber, radiator mounting (Ref #8)
8
Part #19051-KA3-830
RUBBER (Ref #9)
9
Part #19052-HA2-000
COLLAR (Ref #10)
10
Part #19052-KA3-830
COLLAR (Ref #10)
10
Part #19052-MAC-680
COLLAR (Ref #11)
11
Part #19056-HA2-000
Крышка термостата (Ref #12)
12
Part #19060-KT8-000
Tk, radiator reserve (Ref #13)
13
Part #19101-MN4-000
Joint, tube (Ref #14)
14
Part #19102-KT8-000
Cap, reserve tank (Ref #15)
15
Part #19104-MB0-700
Neck, filler (Ref #16)
16
Part #19106-KT8-711
Stay, radiator (Ref #17)
17
Part #19115-MN4-770
Tube, overflow (Ref #18)
18
Part #19205-KT8-000
Thermostat assy. (Ref #19)
19
Part #19300-ML7-003
Case, thermostat (Ref #20)
20
Part #19311-KT8-000
Hose, radiator (Ref #21)
21
Part #19501-MN4-000
Hose, l. water (Ref #22)
22
Part #19502-MN4-000
Hose, r. water (Ref #24)
24
Part #19503-MN4-000
Hose, radiator (Ref #25)
25
Part #19505-MN4-000
Thermo unit (Ref #27)
27
Part #37750-PC1-004
Switch assy., thermo (Ref #28)
28
Part #37760-MR1-003
Bolt, special (6mm) (Ref #29)
29
Part #90111-MN4-000
Bolt, special (6mm) (Ref #29)
29
Part #90111-MZ8-000
Bolt, flange, 6x20 (Ref #30)
30
Part #90104-GF6-000
Прокладка (Ref #31)
31
Part #91307-PH7-660
Прокладка (Ref #32)
32
Part #91311-KE8-000
Screw-washer (Ref #33)
33
Part #93891-040-100-7
Screw-washer (Ref #33)
33
Part #93891-040-100-7
Screw-washer (Ref #33)
33
Part #93891-040-100-7
Screw-washer (Ref #33)
33
Part #93891-040-100-7
Прокладка (Ref #35)
35
Part #9460830000
Clip, tube (b12.5) (Ref #36)
36
Part #9500202130
CLAMP (Ref #37)
37
Part #95002-412-500-8
CLAMP (Ref #37)
37
Part #95002-412-500-8
CLAMP (Ref #37)
37
Part #95002-412-500-8
CLAMP (Ref #37)
37
Part #95002-412-500-8
Bulk hose (7.3x1000) (Ref #38)
38
Part #95005-750-0120M
BOLT (Ref #40)
40
Part #95701-060-120-0
BOLT (Ref #41)
41
Part #95701-060-140-0
Bolt, flange, 6x22 (Ref #42)
42
Part #95701-0602200
BOLT (Ref #43)
43
Part #95801-060-250-7
Bolt, flange, 6x10 (Ref #44)
44
Part #96001-060-100-0
Bolt, flange, 6x16 (Ref #45)
45
Part #96001-0601607
Болт (Ref #46)
46
Part #96001-0602007
