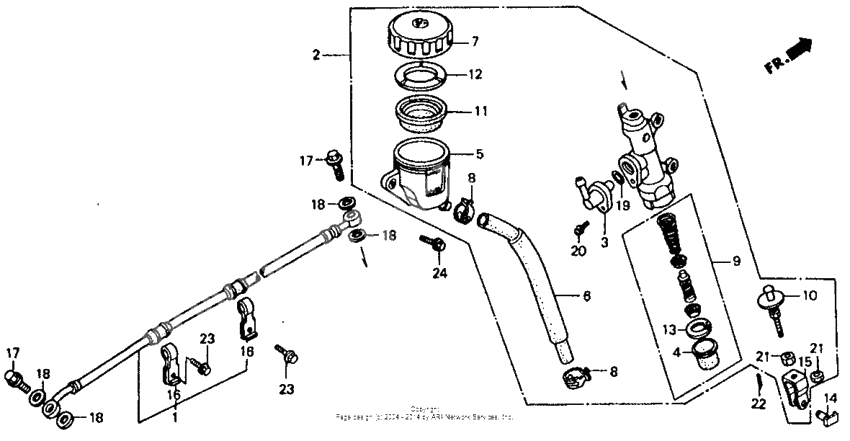

Rear brake master cylinder
Rear brake master cylinder
Hose, rr. brake (Ref #1)
1
Part #43310-MS2-871
M/cyl assy., rr. (Ref #2)
2
Part #43500-MS2-006
Коннектор (Ref #3)
3
Part #43503-MB2-006
Ботинок (Ref #4)
4
Part #43504-MB2-006
Стакан (Ref #5)
5
Part #43511-MA6-006
HOSE (Ref #6)
6
Part #43512-MS2-006
Cap, oil cup (Ref #7)
7
Part #43513-MB4-672
Clamp, master cylinder oil hose (Ref #8)
8
Part #43514-445-771
Clamp, master cylinder oil hose (Ref #8)
8
Part #43514-445-771
Clamp, master cylinder oil hose (Ref #8)
8
Part #43514-445-771
Clamp, master cylinder oil hose (Ref #8)
8
Part #43514-445-771
Piston set, master c (Ref #9)
9
Part #43520-MJ6-315
Штанга (Ref #10)
10
Part #43530-MM5-006
DIAPHRAGM (Ref #11)
11
Part #45520-300-000
Пластина (Ref #12)
12
Part #45521-MJ6-006
Circlip (Ref #13)
13
Part #46182-500-013
Pin d, joint (Ref #14)
14
Part #9501554000
Joint, brake rod (Ref #15)
15
Part #46504-MB2-006
Хомут (Ref #16)
16
Part #52116-KV3-020
Хомут (Ref #16)
16
Part #52116-KV3-020
Хомут (Ref #16)
16
Part #52116-KV3-020
Хомут (Ref #16)
16
Part #52116-KV3-020
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Прокладка (Ref #19)
19
Part #91212-422-006
Screw-washer (Ref #20)
20
Part #93893-040-120-8
Гайка (Ref #21)
21
Part #94002-080-000-S
Гайка (Ref #21)
21
Part #94002-080-000-S
Гайка (Ref #21)
21
Part #94002-080-000-S
Гайка (Ref #21)
21
Part #94002-080-000-S
PIN (Ref #22)
22
Part #94201-20120
BOLT (Ref #23)
23
Part #95701-060-120-7
BOLT (Ref #23)
23
Part #95701-060-120-7
BOLT (Ref #23)
23
Part #95701-060-120-7
BOLT (Ref #23)
23
Part #95701-060-120-7
BOLT (Ref #24)
24
Part #95701-060-140-0
