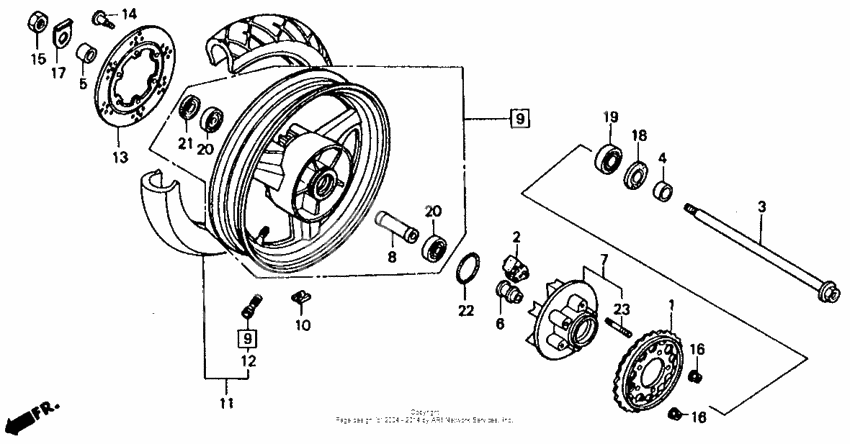

Rear wheel
Rear wheel
Sprkt comp,final (Ref #1)
1
Part #41200-MZ2-890
Damper, rr. wheel (Ref #2)
2
Part #41241-MM5-000
Axle, rr. wheel (Ref #3)
3
Part #42301-MM5-000
Colr, rr. wheel side (Ref #4)
4
Part #42311-MG5-670
Colr, rr. brake side (Ref #5)
5
Part #42313-MZ1-610
Sleeve, rr. axle (Ref #6)
6
Part #42606-MS2-000
Flange, final driven (Ref #7)
7
Part #42610-MS2-000
Collar, rr. (Ref #8)
8
Part #42620-MZ1-000
Wheel set *nh196* (Ref #9)
9
Part #42650-MS2-305ZA
Wheel set *nh196* (Ref #9)
9
Part #42650-MS2-305ZA
Wheel set *nh196* (Ref #9)
9
Part #42650-MS2-305ZA
Wheel set *nh196* (Ref #9)
9
Part #42650-MS2-305ZA
Грузик (Ref #10)
10
Part #42706-MB0-000
Грузик (Ref #10)
10
Part #42705-MCF-D60
Грузик (Ref #10)
10
Part #42704-MCF-D60
Tire (170/60-17) (Ref #11)
11
Part #42711-MS2-872
Клапан, обод колеса (Ref #12)
12
Part #42753-ML7-004
Клапан, обод колеса (Ref #12)
12
Part #42753-ML7-003
Disk, rr. brake (Ref #13)
13
Part #43251-MBR-J11
Bolt, fr. (8x24) (Ref #14)
14
Part #90105-KR3-000
Nut, axle (18mm) (Ref #15)
15
Part #90305-KA4-003
Nut, flange, 12mm (Ref #16)
16
Part #90306-KF0-003
Nut, flange, 12mm (Ref #16)
16
Part #90306-KF0-003
Nut, flange, 12mm (Ref #16)
16
Part #90306-KF0-003
Nut, flange, 12mm (Ref #16)
16
Part #90306-KF0-003
Washer, rr. axle (Ref #17)
17
Part #90559-MJ0-630
Oil seal (34x62.2x7) (Ref #18)
18
Part #90753-MG5-670
Bearing (6305uu) (Ref #19)
19
Part #91051-MBT-611
Bearing (6304uu) (Ref #20)
20
Part #91053-MM5-004
Bearing (6304uu) (Ref #20)
20
Part #91053-MM5-004
Bearing (6304uu) (Ref #20)
20
Part #91053-MM5-004
Bearing (6304uu) (Ref #20)
20
Part #91053-MM5-004
Dust seal (30x52x7) (Ref #21)
21
Part #91253-442-003
Прокладка (Ref #22)
22
Part #91302-MS2-003
Болт заклепка (Ref #23)
23
Part #92918-12028-0E
