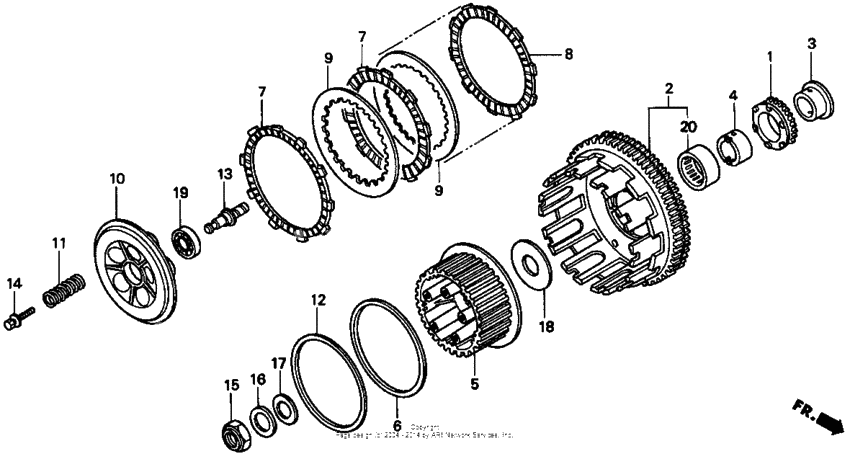

Сцепление
Сцепление
Звездочка (Ref #1)
1
Part #15131-MAS-003
Clutch outer (Ref #2)
2
Part #22100-MAE-000
COLLAR (Ref #3)
3
Part #22116-MV9-670
Втулка (Ref #4)
4
Part #22117-MW0-000
Center, clutch (Ref #5)
5
Part #22120-MW0-000
Seat, judder spring (Ref #6)
6
Part #22125-ML7-000
Disk, cl friction (Ref #7)
7
Part #22201-MAE-000
Disk, cl friction (Ref #7)
7
Part #22201-MAE-000
Disk, cl friction (Ref #7)
7
Part #22201-MAE-000
Disk, cl friction (Ref #7)
7
Part #22201-MAE-000
Disk b, cl friction (Ref #8)
8
Part #22202-MAE-000
Plate, clutch (Ref #9)
9
Part #22321-MW0-000
Plate, clutch (Ref #9)
9
Part #22321-MW0-000
Plate, clutch (Ref #9)
9
Part #22321-MW0-000
Plate, clutch (Ref #9)
9
Part #22321-MW0-000
Plate, clu press (Ref #10)
10
Part #22350-ML7-000
Пружина (Ref #11)
11
Part #22401-MS8-000
Spring, judder (Ref #12)
12
Part #22402-MW0-000
Pin, clutch lifter (Ref #13)
13
Part #22847-MAE-000
Bolt-washer (6x25) (Ref #14)
14
Part #90022-MM5-000
Nut, lock (22mm) (Ref #15)
15
Part #90231-MM5-000
Шайба (Ref #16)
16
Part #90432-MM5-000
Шайба (Ref #18)
18
Part #90459-MM4-000
Bearing, radial ball, 16003 (Ref #19)
19
Part #91011-KK6-013
Bearing (35x42x23) (Ref #20)
20
Part #91026-MV9-671
