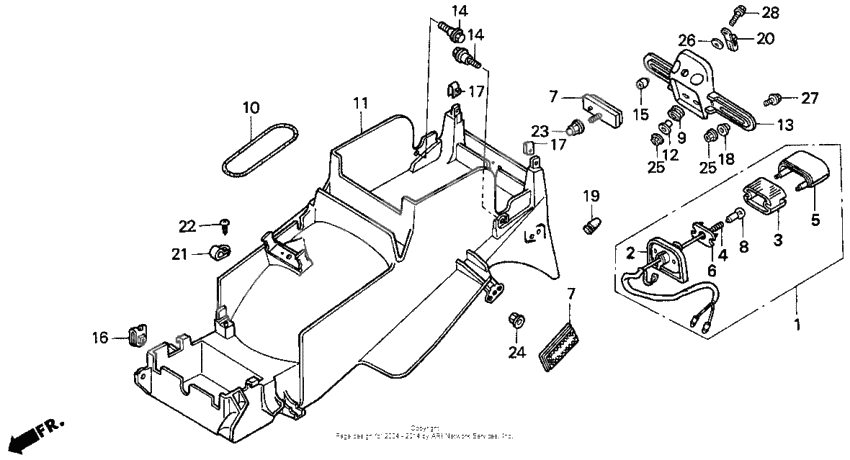

Rear fender
Rear fender
Light assy., license (Ref #1)
1
Part #33720-MV9-670
Основание (Ref #2)
2
Part #33721-MB2-003
Lens, license (Ref #3)
3
Part #33722-MB1-013
Wire, license (Ref #4)
4
Part #33725-KN7-670
Cover, license light (Ref #5)
5
Part #33727-ME4-671
Прокладка (Ref #6)
6
Part #33729-MB1-003
Reflector, reflex (stanley) (Ref #7)
7
Part #33741-MS6-921
Reflector, reflex (stanley) (Ref #7)
7
Part #33741-MS6-921
Reflector, reflex (stanley) (Ref #7)
7
Part #33741-MS6-921
Reflector, reflex (stanley) (Ref #7)
7
Part #33741-MS6-921
Bulb (Ref #8)
8
Part #34909-505-003
Rubber, fr. fender mounting (Ref #9)
9
Part #61103-357-000
Fender a, rr. (Ref #11)
11
Part #80100-MW0-000
Collar, rr. fender (Ref #12)
12
Part #80114-KE2-940
Brkt, number plate (Ref #13)
13
Part #84701-ML7-670
Bolt, special (Ref #14)
14
Part #90003-GT8-600
Bolt, special (Ref #14)
14
Part #90003-GT8-600
Bolt, special (Ref #14)
14
Part #90003-GT8-600
Bolt, special (Ref #14)
14
Part #90003-GT8-600
Nut, special (4mm) (Ref #15)
15
Part #90302-MB2-000
Nut, clip (6mm) (Ref #16)
16
Part #90305-KT7-000
Nut, clip (6mm) (Ref #17)
17
Part #90321-GS6-670
Nut, clip (6mm) (Ref #17)
17
Part #90321-GS6-670
Nut, clip (6mm) (Ref #17)
17
Part #90321-GS6-670
Nut, clip (6mm) (Ref #17)
17
Part #90321-GS6-670
Washer, 6x20 (Ref #18)
18
Part #90502-VA4-640
Plug, cone type (Ref #19)
19
Part #90899-422-610
Clip, 2x60 (Ref #20)
20
Part #91410-679-000
CLIP (Ref #21)
21
Part #91475-SB6-000
Болт (Ref #22)
22
Part #93913-24120
Nut, cap, 5mm (Ref #23)
23
Part #94021-050000S
Гайка (Ref #24)
24
Part #94050-05070
Гайка (Ref #25)
25
Part #94050-06000
Гайка (Ref #25)
25
Part #94050-06000
Гайка (Ref #25)
25
Part #94050-06000
Гайка (Ref #25)
25
Part #94050-06000
Шайба (Ref #26)
26
Part #94103-06000
BOLT (Ref #27)
27
Part #95701-060-160-0
BOLT (Ref #28)
28
Part #95701-060-250-8
