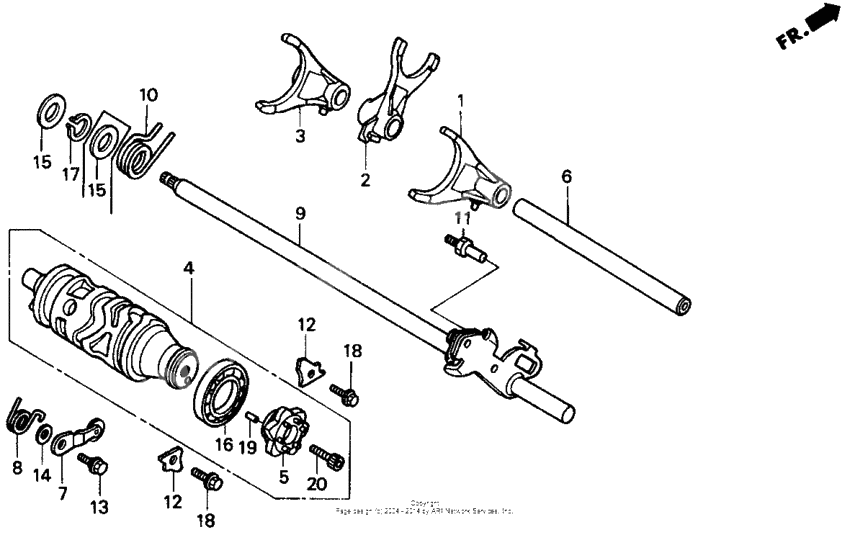

Gearshift drum
Gearshift drum
Fork, r. gearshift (Ref #1)
1
Part #24211-MY5-600
Fork l,gear shift (Ref #3)
3
Part #24213-MY5-600
Fork l,gear shift (Ref #3)
3
Part #24213-MY5-600
Fork l,gear shift (Ref #3)
3
Part #24213-MY5-600
Fork l,gear shift (Ref #3)
3
Part #24213-MY5-600
Drum, gearshift (Ref #4)
4
Part #24310-MW0-790
Center, shift drum (Ref #5)
5
Part #24315-MV9-932
SHAFT (Ref #6)
6
Part #24321-MAS-000
Stopper, drum (Ref #7)
7
Part #24430-MW0-000
Spring, drum stopper (Ref #8)
8
Part #24435-MW0-000
Spindle, gearshift (Ref #9)
9
Part #24610-MW0-010
Spring, shift return (Ref #10)
10
Part #24651-MW0-000
PIN (Ref #11)
11
Part #24652-035-000
Plate, drum setting (Ref #12)
12
Part #24655-MV9-670
Plate, drum setting (Ref #12)
12
Part #24655-MV9-670
Plate, drum setting (Ref #12)
12
Part #24655-MV9-670
Plate, drum setting (Ref #12)
12
Part #24655-MV9-670
Ось (Ref #13)
13
Part #90022-MW0-000
Washer, drum stopper (Ref #14)
14
Part #90417-360-000
Washer, 14mm (Ref #15)
15
Part #90451-155-000
Washer, 14mm (Ref #15)
15
Part #90451-155-000
Washer, 14mm (Ref #15)
15
Part #90451-155-000
Washer, 14mm (Ref #15)
15
Part #90451-155-000
Bearing (16005) (Ref #16)
16
Part #91008-374-003
Circlip (Ref #17)
17
Part #94510-14000
BOLT (Ref #18)
18
Part #95701-060-140-0
BOLT (Ref #18)
18
Part #95701-060-140-0
BOLT (Ref #18)
18
Part #95701-060-140-0
BOLT (Ref #18)
18
Part #95701-060-140-0
Roller, 4x8 (Ref #19)
19
Part #9622040080
Bolt, socket (8x20) (Ref #20)
20
Part #96600-0802010
