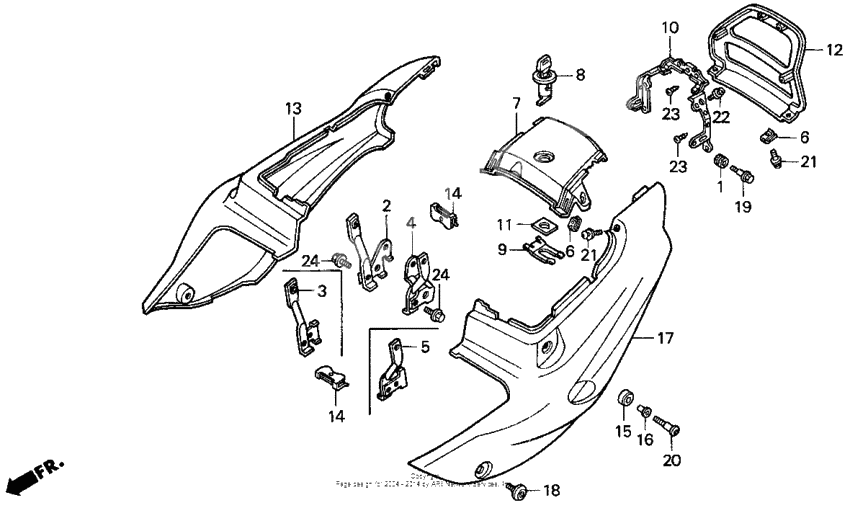

Side cover
Side cover
Rubber a, protector (Ref #1)
1
Part #18320-196-000
Stay, r. side cover (Ref #3)
3
Part #50201-MW0-000
Stay, l. side cover (Ref #5)
5
Part #50202-MW0-000
Nut,clip,4mm (Ref #6)
6
Part #64527-KY2-700
Nut,clip,4mm (Ref #6)
6
Part #64527-KY2-700
Nut,clip,4mm (Ref #6)
6
Part #64527-KY2-700
Nut,clip,4mm (Ref #6)
6
Part #64527-KY2-700
Cowl, rr. *nh259m* (Ref #7)
7
Part #77210-MW0-000ZD
Cowl, rr. st *pb231* (Ref #7)
7
Part #77210-MW0-000ZC
Lock assy., seat (Ref #8)
8
Part #77225-ME4-003
Пружина (Ref #9)
9
Part #77226-KY2-700
Stay, taillight (Ref #10)
10
Part #77234-MAS-000
Washer, seat lock (Ref #11)
11
Part #77236-GZ5-000
Cvr *nh1* (type4) (Ref #12)
12
Part #77250-MW0-670ZC
Cvr *nh196* (type3) (Ref #12)
12
Part #77250-MW0-670ZB
Cvr *nh1* (type4) (Ref #13)
13
Part #83600-MW0-670ZC
Cvr *nh196* (type3) (Ref #13)
13
Part #83600-MW0-670ZB
CLIP (Ref #14)
14
Part #83636-KY1-000
CLIP (Ref #14)
14
Part #83636-KY1-000
CLIP (Ref #14)
14
Part #83636-KY1-000
CLIP (Ref #14)
14
Part #83636-KY1-000
Кольцо/шайба (Ref #15)
15
Part #83641-KY2-700
COLLAR (Ref #16)
16
Part #83642-KY2-700
Cvr *nh1* (type4) (Ref #17)
17
Part #83700-MW0-670ZC
Cvr *nh196* (type3) (Ref #17)
17
Part #83700-MW0-670ZB
Bolt, cowl setting (Ref #18)
18
Part #90112-MT4-000
Болт (Ref #19)
19
Part #90113-GJ2-000
BOLT (Ref #20)
20
Part #90116-KY2-700
Screw-washer (Ref #21)
21
Part #93891-040-120-7
Screw-washer (Ref #21)
21
Part #93891-040-120-7
Screw-washer (Ref #21)
21
Part #93891-040-120-7
Screw-washer (Ref #21)
21
Part #93891-040-120-7
Screw-washer (4x12) (Ref #22)
22
Part #93894-0401200
Болт (Ref #23)
23
Part #93903-44220
Болт (Ref #23)
23
Part #93903-44220
Болт (Ref #23)
23
Part #93903-44220
Болт (Ref #23)
23
Part #93903-44220
Болт (Ref #24)
24
Part #96300-0601600
Болт (Ref #24)
24
Part #96300-0601600
Болт (Ref #24)
24
Part #96300-0601600
Болт (Ref #24)
24
Part #96300-0601600
