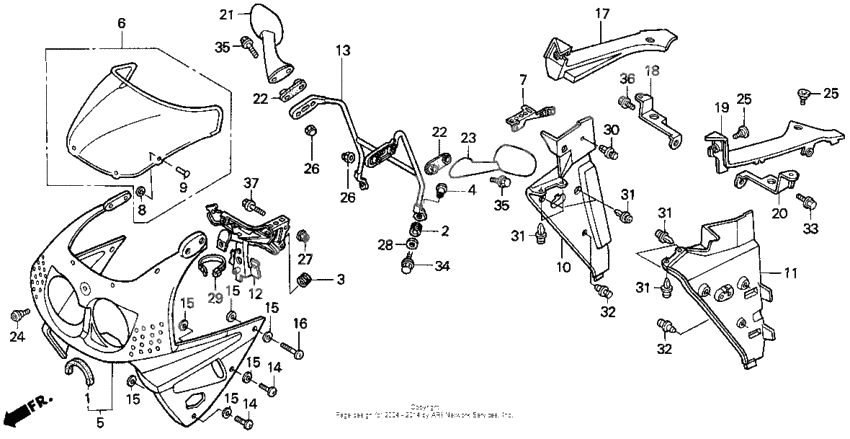

Upper cowl 93-94
Upper cowl 93-94
Seal, headlight (Ref #1)
1
Part #33103-MW0-300
Rubber b (Ref #2)
2
Part #33706-KW7-900
RUBBER (Ref #3)
3
Part #37125-MR7-008
Collar, setting (Ref #4)
4
Part #61104-422-000
Cowl *nh1* (type4) (Ref #5)
5
Part #64100-MW0-670ZC
Cowl *nh196* (type3) (Ref #5)
5
Part #64100-MW0-670ZB
Windscreen set (Ref #6)
6
Part #64110-MW0-405
Держатель соединения (Ref #7)
7
Part #64125-MW0-000
Nut, speed (4mm) (Ref #8)
8
Part #64206-MJ0-000
Pin, screen setting (Ref #9)
9
Part #64206-ML0-700
Cowl, r. *nh1* (Ref #10)
10
Part #64325-MW0-670ZB
Cowl, r. *nh196* (Ref #10)
10
Part #64325-MW0-670ZA
Cowl, l. *nh1* (Ref #11)
11
Part #64375-MW0-670ZB
Cowl, l. *nh196* (Ref #11)
11
Part #64375-MW0-670ZA
Stay a, cowl (upper) (Ref #12)
12
Part #64501-MW0-000
Stay b, cowl (upper) (Ref #13)
13
Part #64502-MW0-000
Болт (Ref #14)
14
Part #64507-MN4-000
Болт (Ref #14)
14
Part #64507-MN4-000
Болт (Ref #14)
14
Part #64507-MN4-000
Болт (Ref #14)
14
Part #64507-MN4-000
Болт (Ref #16)
16
Part #64512-KV3-831
Panel, r. (inner) (Ref #17)
17
Part #64590-MW0-000
Stay, r. panel (Ref #18)
18
Part #64591-MW0-000
Panel, l. (inner) (Ref #19)
19
Part #64595-MW0-000
Stay, l. panel (Ref #20)
20
Part #64596-MW0-000
Mirror, r. *nh1* (Ref #21)
21
Part #88110-MW0-791ZA
RUBBER (Ref #22)
22
Part #88116-MW0-000
RUBBER (Ref #22)
22
Part #88116-MW0-000
RUBBER (Ref #22)
22
Part #88116-MW0-000
RUBBER (Ref #22)
22
Part #88116-MW0-000
Mirror, l. *nh1* (Ref #23)
23
Part #88120-MW0-791ZA
Bolt, cowl setting (Ref #24)
24
Part #90112-MT4-000
Screw, pan (6x14) (Ref #25)
25
Part #90113-MM5-000
Screw, pan (6x14) (Ref #25)
25
Part #90113-MM5-000
Screw, pan (6x14) (Ref #25)
25
Part #90113-MM5-000
Screw, pan (6x14) (Ref #25)
25
Part #90113-MM5-000
Nut, cap, 6mm (Ref #26)
26
Part #90201-428-900
Nut, cap, 6mm (Ref #26)
26
Part #90201-428-900
Nut, cap, 6mm (Ref #26)
26
Part #90201-428-900
Nut, cap, 6mm (Ref #26)
26
Part #90201-428-900
Nut, flange (8mm) (Ref #27)
27
Part #90309-MR1-770
Washer, plain, 22x6x1.6 (Ref #28)
28
Part #90404-PD1-000
BAND (Ref #29)
29
Part #90650-KV6-003
CLIP (Ref #30)
30
Part #90657-SB0-003
CLIP (Ref #32)
32
Part #91549-P1E-003
CLIP (Ref #32)
32
Part #91549-P1E-003
CLIP (Ref #32)
32
Part #91549-P1E-003
CLIP (Ref #32)
32
Part #91549-P1E-003
BOLT (Ref #33)
33
Part #96001-060-120-7
Болт (Ref #34)
34
Part #96001-0602807
Bolt, flange, 6x32 (Ref #35)
35
Part #96001-0603200
Bolt, flange, 6x32 (Ref #35)
35
Part #96001-0603200
Bolt, flange, 6x32 (Ref #35)
35
Part #96001-0603200
Bolt, flange, 6x32 (Ref #35)
35
Part #96001-0603200
Болт (Ref #36)
36
Part #96300-0601208
Болт (Ref #37)
37
Part #96400-0803207
