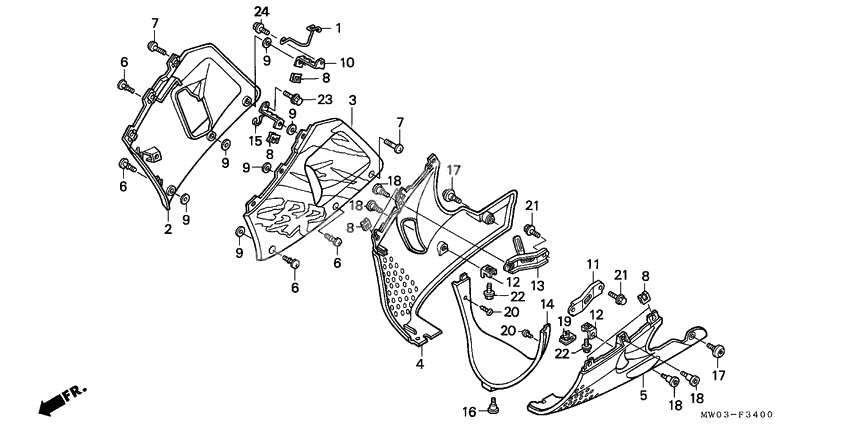

Lower cowl
Lower cowl
Clamp, air vent tube (Ref #1)
1
Part #16961-MW0-000
Cowl set,r*type6* (Ref #2)
2
Part #64300-MW0-790ZB
Cowl set,r*type5* (Ref #2)
2
Part #64300-MW0-790ZA
Cowl set,l*type6* (Ref #3)
3
Part #64350-MW0-790ZB
Cowl set,l*type5* (Ref #3)
3
Part #64350-MW0-790ZA
Cowl set,r*type6* (Ref #4)
4
Part #64400-MW0-790ZB
Cowl set,r*type5* (Ref #4)
4
Part #64400-MW0-790ZA
Cowl set,l*type6* (Ref #5)
5
Part #64450-MW0-790ZB
Cowl set,l*type5* (Ref #5)
5
Part #64450-MW0-790ZA
Болт (Ref #7)
7
Part #64507-MW0-000
Болт (Ref #7)
7
Part #64507-MW0-000
Болт (Ref #7)
7
Part #64507-MW0-000
Болт (Ref #7)
7
Part #64507-MW0-000
Stay, r. middle cowl (Ref #10)
10
Part #64531-MW0-000
Stay, l. cowl (Ref #11)
11
Part #64541-MW0-000
Stay, cowl (lower) (Ref #12)
12
Part #64542-MW0-000
Stay, cowl (lower) (Ref #12)
12
Part #64542-MW0-000
Stay, cowl (lower) (Ref #12)
12
Part #64542-MW0-000
Stay, cowl (lower) (Ref #12)
12
Part #64542-MW0-000
Stay, r. cowl (Ref #13)
13
Part #64546-MW0-000
Cowl,inner*nh196* (Ref #14)
14
Part #64560-MW0-000ZB
Cowl,inner l*nh1* (Ref #14)
14
Part #64560-MW0-000ZA
Stay, l. middle cowl (Ref #15)
15
Part #64581-MW0-000
Screw (6x19) (Ref #16)
16
Part #90104-MN4-000
Bolt, cowl setting (Ref #17)
17
Part #90112-MT4-000
Bolt, cowl setting (Ref #17)
17
Part #90112-MT4-000
Bolt, cowl setting (Ref #17)
17
Part #90112-MT4-000
Bolt, cowl setting (Ref #17)
17
Part #90112-MT4-000
Nut, clip (6mm) (Ref #19)
19
Part #90321-MM5-000
Болт (Ref #20)
20
Part #93903-24380
Болт (Ref #20)
20
Part #93903-24380
Болт (Ref #20)
20
Part #93903-24380
Болт (Ref #20)
20
Part #93903-24380
BOLT (Ref #21)
21
Part #95701-060-120-0
BOLT (Ref #21)
21
Part #95701-060-120-0
BOLT (Ref #21)
21
Part #95701-060-120-0
BOLT (Ref #21)
21
Part #95701-060-120-0
BOLT (Ref #22)
22
Part #95701-060-200-0
BOLT (Ref #22)
22
Part #95701-060-200-0
BOLT (Ref #22)
22
Part #95701-060-200-0
BOLT (Ref #22)
22
Part #95701-060-200-0
Болт (Ref #23)
23
Part #96300-0601207
Болт (Ref #24)
24
Part #96300-0601607
