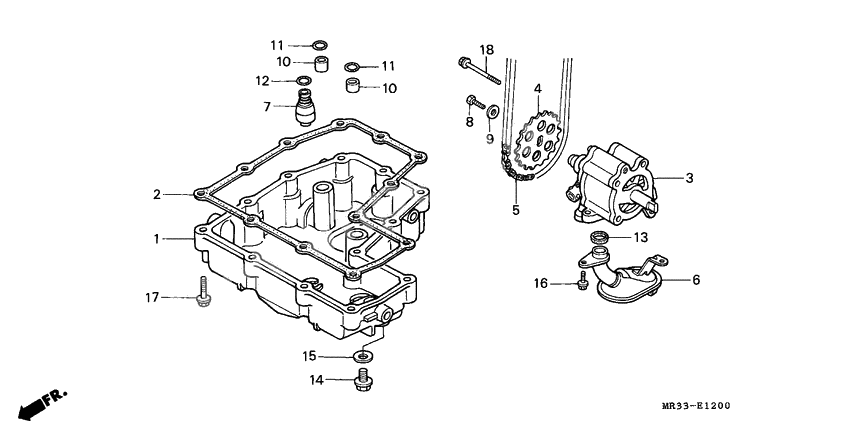

Oil pan/oil pump
Oil pan/oil pump
Поддон маслянный (Ref #1)
1
Part #11210-MN4-010
Прокладка (Ref #2)
2
Part #11398-MN4-920
Насос масляный (Ref #3)
3
Part #15100-MN4-000
Звездочка (Ref #4)
4
Part #15134-KT8-000
Цепь (Ref #5)
5
Part #15141-KT8-003
Фильтр spule (Ref #6)
6
Part #15153-KT8-000
Valve assy., relief (Ref #7)
7
Part #15220-KT8-000
Bolt, hex., 6x16 (Ref #8)
8
Part #90021-KE8-010
Шайба (Ref #9)
9
Part #90488-MB0-000
Pin, guide (13x8.5) (Ref #10)
10
Part #91105-MA6-000
Pin, guide (13x8.5) (Ref #10)
10
Part #91105-MA6-000
Pin, guide (13x8.5) (Ref #10)
10
Part #91105-MA6-000
Pin, guide (13x8.5) (Ref #10)
10
Part #91105-MA6-000
O-ring, 13x3.0 (Ref #11)
11
Part #91302-MB6-830
O-ring, 13x3.0 (Ref #11)
11
Part #91302-MB6-830
O-ring, 13x3.0 (Ref #11)
11
Part #91302-MB6-830
O-ring, 13x3.0 (Ref #11)
11
Part #91302-MB6-830
Прокладка (Ref #12)
12
Part #91313-MG7-004
Прокладка (Ref #13)
13
Part #91315-KT8-003
BOLT (Ref #14)
14
Part #92800-12000
Шайба (Ref #15)
15
Part #94109-12000
BOLT (Ref #16)
16
Part #95701-060-160-0
Bolt, flange, 6x28 (Ref #17)
17
Part #95701-0602800
Bolt, flange, 6x85 (Ref #18)
18
Part #95701-0608500
