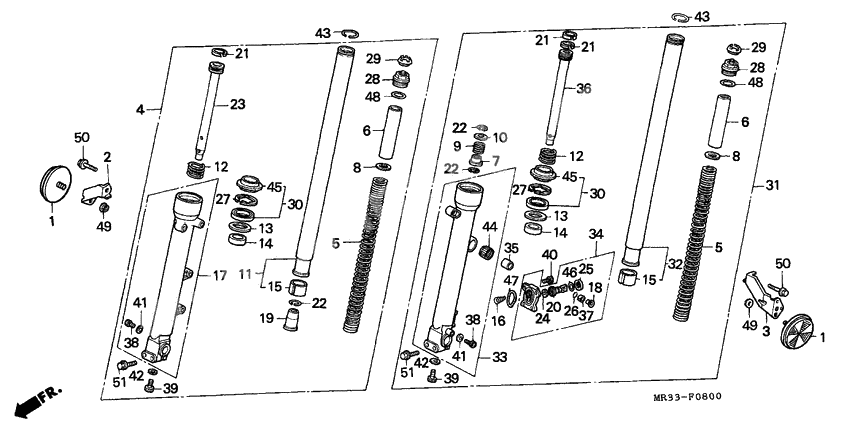

Front
Front
Reflector,fr.refl (Ref #1)
1
Part #33741-MM9-690
Reflector,fr.refl (Ref #1)
1
Part #33741-MM9-690
Reflector,fr.refl (Ref #1)
1
Part #33741-MM9-690
Reflector,fr.refl (Ref #1)
1
Part #33741-MM9-690
Stay, r. fr. reflex (Ref #2)
2
Part #50356-MN4-000
Stay, l. fr. reflex (Ref #3)
3
Part #50357-MN4-000
Fork assy., r. fr. (Ref #4)
4
Part #51400-MN4-003
Spring, fr. fork (Ref #5)
5
Part #51401-MN4-003
Spring, fr. fork (Ref #5)
5
Part #51401-MN4-003
Spring, fr. fork (Ref #5)
5
Part #51401-MN4-003
Spring, fr. fork (Ref #5)
5
Part #51401-MN4-003
Collar, spring (Ref #6)
6
Part #51402-KT8-003
Collar, spring (Ref #6)
6
Part #51402-KT8-003
Collar, spring (Ref #6)
6
Part #51402-KT8-003
Collar, spring (Ref #6)
6
Part #51402-KT8-003
Valve, oil lock (Ref #7)
7
Part #51403-MA6-003
Plate, spring joint (Ref #8)
8
Part #51403-ME4-003
Plate, spring joint (Ref #8)
8
Part #51403-ME4-003
Plate, spring joint (Ref #8)
8
Part #51403-ME4-003
Plate, spring joint (Ref #8)
8
Part #51403-ME4-003
Пружина (Ref #9)
9
Part #51404-MA6-003
Пружина (Ref #10)
10
Part #51405-MA6-003
Pipe, r. fr. fork (Ref #11)
11
Part #51410-MN4-003
Пружина (Ref #12)
12
Part #51411-MG1-003
Пружина (Ref #12)
12
Part #51411-MG1-003
Пружина (Ref #12)
12
Part #51411-MG1-003
Пружина (Ref #12)
12
Part #51411-MG1-003
Ring, back-up (Ref #13)
13
Part #51412-461-003
Ring, back-up (Ref #13)
13
Part #51412-461-003
Ring, back-up (Ref #13)
13
Part #51412-461-003
Ring, back-up (Ref #13)
13
Part #51412-461-003
Bush, guide (Ref #14)
14
Part #51414-MN4-003
Bush, guide (Ref #14)
14
Part #51414-MN4-003
Bush, guide (Ref #14)
14
Part #51414-MN4-003
Bush, guide (Ref #14)
14
Part #51414-MN4-003
Bush, slider (Ref #15)
15
Part #51415-MN4-003
Bush, slider (Ref #15)
15
Part #51415-MN4-003
Bush, slider (Ref #15)
15
Part #51415-MN4-003
Bush, slider (Ref #15)
15
Part #51415-MN4-003
Spring, piston (Ref #16)
16
Part #51418-ML7-003
Case, r. (lower) (Ref #17)
17
Part #51421-MN4-003
Collar, piston (Ref #18)
18
Part #51423-MJ0-003
Piece, oil lock (Ref #19)
19
Part #51432-ML7-003
PISTON (Ref #20)
20
Part #51436-ML7-003
Pipe, seat (Ref #23)
23
Part #51440-MN4-003
Rubber, stopper (Ref #24)
24
Part #51441-ML7-013
Boot, piston case (Ref #25)
25
Part #51442-MJ0-003
Кольцо (Ref #26)
26
Part #51445-MJ0-003
RING (Ref #27)
27
Part #51447-KR6-003
RING (Ref #27)
27
Part #51447-KR6-003
RING (Ref #27)
27
Part #51447-KR6-003
RING (Ref #27)
27
Part #51447-KR6-003
Bolt assy., fr. fork (Ref #28)
28
Part #51450-ML7-003
Bolt assy., fr. fork (Ref #28)
28
Part #51450-ML7-003
Bolt assy., fr. fork (Ref #28)
28
Part #51450-ML7-003
Bolt assy., fr. fork (Ref #28)
28
Part #51450-ML7-003
Чашка воздушного клапана (Ref #29)
29
Part #51457-KM4-003
Чашка воздушного клапана (Ref #29)
29
Part #51457-KM4-003
Чашка воздушного клапана (Ref #29)
29
Part #51457-KM4-003
Чашка воздушного клапана (Ref #29)
29
Part #51457-KM4-003
Seal set, fr. fork (Ref #30)
30
Part #51490-KAZ-003
Seal set, fr. fork (Ref #30)
30
Part #51490-KAZ-003
Seal set, fr. fork (Ref #30)
30
Part #51490-KAZ-003
Seal set, fr. fork (Ref #30)
30
Part #51490-KAZ-003
Fork assy., l. fr. (Ref #31)
31
Part #51500-MN4-013
Pipe, l. fr. fork (Ref #32)
32
Part #51510-MN4-003
Case, l. (lower) (Ref #33)
33
Part #51521-MN4-003
Case, piston (Ref #34)
34
Part #51530-ML7-013
Collar, l. fr. (Ref #35)
35
Part #51536-ML7-000
Pipe b, seat (Ref #36)
36
Part #51540-MN4-003
Bush, rubber (Ref #37)
37
Part #51545-MJ0-003
Bolt, socket (6x8) (Ref #38)
38
Part #90111-MK7-671
Bolt, socket (6x8) (Ref #38)
38
Part #90111-MK7-671
Bolt, socket (6x8) (Ref #38)
38
Part #90111-MK7-671
Bolt, socket (6x8) (Ref #38)
38
Part #90111-MK7-671
Bolt, socket (8mm) (Ref #39)
39
Part #90116-KV3-701
Bolt, socket (8mm) (Ref #39)
39
Part #90116-KV3-701
Bolt, socket (8mm) (Ref #39)
39
Part #90116-KV3-701
Bolt, socket (8mm) (Ref #39)
39
Part #90116-KV3-701
Bolt (5x13.5) (Ref #40)
40
Part #90116-ML7-003
Gasket, fr. (Ref #41)
41
Part #90543-273-000
Gasket, fr. (Ref #41)
41
Part #90543-273-000
Gasket, fr. (Ref #41)
41
Part #90543-273-000
Gasket, fr. (Ref #41)
41
Part #90543-273-000
Шайба (Ref #42)
42
Part #90544-283-000
Шайба (Ref #42)
42
Part #90544-283-000
Шайба (Ref #42)
42
Part #90544-283-000
Шайба (Ref #42)
42
Part #90544-283-000
Кольцо (Ref #43)
43
Part #90602-KM9-000
Кольцо (Ref #43)
43
Part #90602-KM9-000
Кольцо (Ref #43)
43
Part #90602-KM9-000
Кольцо (Ref #43)
43
Part #90602-KM9-000
Bearing (1422) (Ref #44)
44
Part #91071-ML7-003
DUST SEAL (Ref #45)
45
Part #91254-KAZ-003
DUST SEAL (Ref #45)
45
Part #91254-KAZ-003
DUST SEAL (Ref #45)
45
Part #91254-KAZ-003
DUST SEAL (Ref #45)
45
Part #91254-KAZ-003
Прокладка (Ref #46)
46
Part #91304-ML7-003
Прокладка (Ref #47)
47
Part #91356-KF0-003
Прокладка (Ref #48)
48
Part #91356-MJ6-741
Прокладка (Ref #48)
48
Part #91356-MJ6-741
Прокладка (Ref #48)
48
Part #91356-MJ6-741
Прокладка (Ref #48)
48
Part #91356-MJ6-741
Гайка (Ref #49)
49
Part #9402106020
Гайка (Ref #49)
49
Part #9402106020
Гайка (Ref #49)
49
Part #9402106020
Гайка (Ref #49)
49
Part #9402106020
BOLT (Ref #50)
50
Part #95701-060-220-7
BOLT (Ref #50)
50
Part #95701-060-220-7
BOLT (Ref #50)
50
Part #95701-060-220-7
BOLT (Ref #50)
50
Part #95701-060-220-7
Болт (Ref #51)
51
Part #96300-0805007
Болт (Ref #51)
51
Part #96300-0805007
Болт (Ref #51)
51
Part #96300-0805007
Болт (Ref #51)
51
Part #96300-0805007
-
3051490-ML7-305
Seal set, fr. fork
2Replaced by 51490-KAZ-003 Доступно: Нет в наличии
