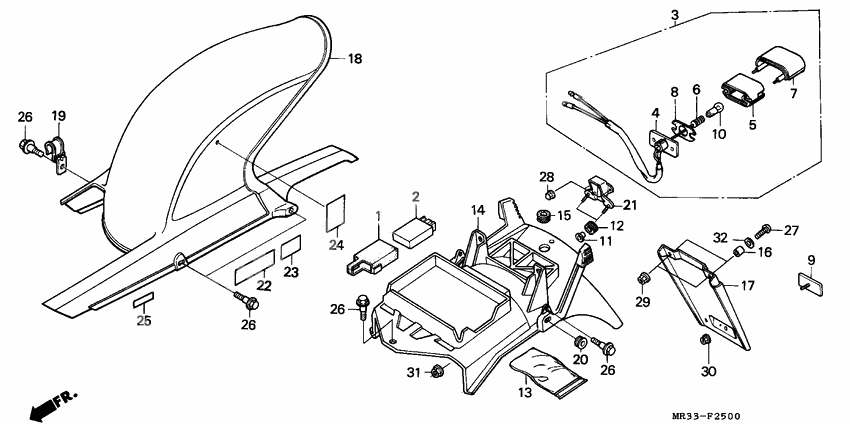

Rear fender AR
Rear fender AR
Suspension (Ref #1)
1
Part #30405-MN4-000
Spark unit (Ref #2)
2
Part #30410-MT6-601
Light assy.,licen (Ref #3)
3
Part #33720-MN4-611
Base comp. (Ref #4)
4
Part #33721-MK5-611
Lens, license (Ref #5)
5
Part #33722-MB1-013
Cord comp.,licens (Ref #6)
6
Part #33725-MN4-610
Cover, license light (Ref #7)
7
Part #33727-ME4-671
Прокладка (Ref #8)
8
Part #33729-MB1-003
Reflector, reflex (Ref #9)
9
Part #33741-MC7-612
Bulb (Ref #10)
10
Part #34904-634-611
Collar, setting (Ref #11)
11
Part #61104-422-000
Rubber, side shelter (Ref #12)
12
Part #64122-KV0-000
Bag, service book (Ref #13)
13
Part #77251-342-000
Fender a,rr. (Ref #14)
14
Part #80101-MN4-610
Grommet, wire cord (Ref #15)
15
Part #80102-323-000
Collar, rr. mudguard (Ref #16)
16
Part #80115-MC7-640
Mudguard,rr.fende (Ref #17)
17
Part #80121-MN4-610
Fender, rr. (Ref #18)
18
Part #80201-MN4-770
Clamp, brake hose (Ref #19)
19
Part #81200-MN4-000
Уплотнение (Ref #20)
20
Part #83551-MA6-000
Braket,license li (Ref #21)
21
Part #84705-MN4-600
Mark,tire caution (Ref #22)
22
Part #87505-MN4-600
MARK (Ref #23)
23
Part #87507-MT6-670
Mark,access.load (Ref #24)
24
Part #87512-MN4-300
LABEL (Ref #25)
25
Part #87519-MN4-300
Screw-washer (Ref #27)
27
Part #93894-050-160-7
Nut, cap (4mm) (Ref #28)
28
Part #94021-040700S
Гайка (Ref #29)
29
Part #94050-05000
Гайка (Ref #31)
31
Part #94050-06000
Шайба (Ref #32)
32
Part #94103-05800
